Sinbosen Professional D-300 12 Inch Coaxial Speaker Sound DJ Neodymium Coaxial Speaker
Item No.: D-300
Brand: Sinbosen
Type: D-300
MF rated Power/ Peak:400W/8Ω 1600W/ Peak
HF rated Power/ Peak:150W/8Ω 500W/ Peak
Sensitivity: 99dB
Line Array: 12 inch Coaxial Speaker
Warrenty: 3 Years
Special Service: OEM Service Offered
Type: D-300
MF rated Power/ Peak:400W/8Ω 1600W/ Peak
HF rated Power/ Peak:150W/8Ω 500W/ Peak
Sensitivity: 99dB
Line Array: 12 inch Coaxial Speaker
Warrenty: 3 Years
Special Service: OEM Service Offered
Description
Technical Parameters
Neodymium magnetic coaxial | D-300 |
MF rated Power/ Peak: | 400W/8Ω 1600W/ Peak |
HF rated Power/ Peak: | 150W/8Ω 500W/ Peak |
Impedance | 8Ω |
Frequency response | 55Hz-20KHz 1M/1W |
Sensitivity | 99dB |
Maximum sound pressure | 128dB |
Nominal coverage angle | 80° × 80° |

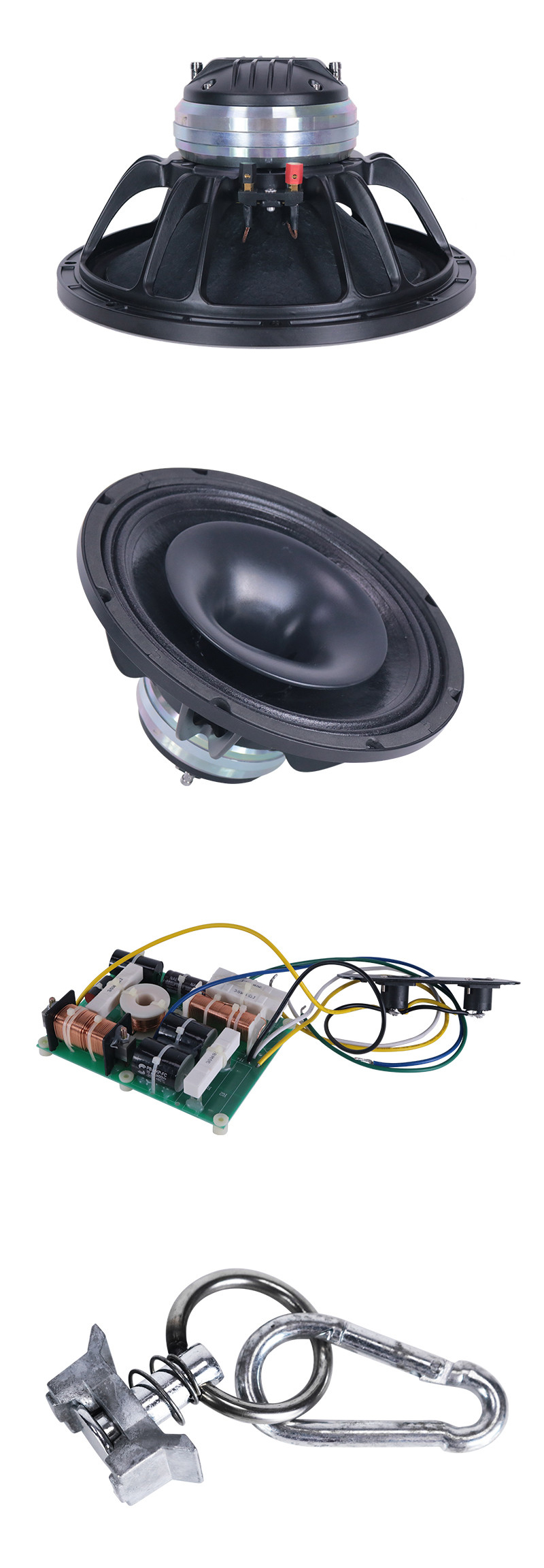

Unit structure | 1X12' bass 1X3' treble |
Crossover point | 2100Hz, with perfect phase response |
Hanging parts | 16 M8 screw hanging point |
Connectors | Two 4-core SPEAKON sockets 1+1-INDOOR |
Indoor Use | Applicable |
Wood case | 15mm plywood |
Waterproof and scratch resistant coating Material | polyurea |

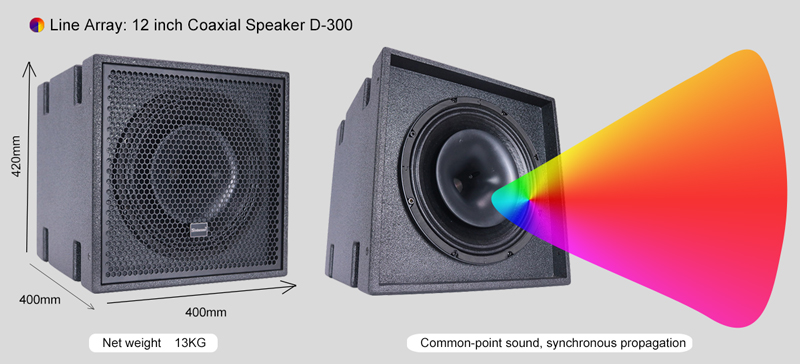

Size (W x D x H) | 400X400X420MM |
Net weight | 13KG |
Recommended high pass filter | 50 Hz full frequency (24 dB/oc |
The coaxial speaker is designed as a combination of a tweeter and a woofer. The tweeter is skillfully placed at the axis of the woofer. Therefore, it can be ensured that the acoustic center of high and low is the same point, and to solve the problem of phase deviation between high and low speakers of the same speaker. Really close to the original sound source in nature.
Coaxial speakers can replace current treble, midrange, bass (speakers of multiple speaker systems). The trebles, mid-range, and bass (full range sound) Propagation Phase Fidelity of the coaxial speaker is extremely high. Due to the improved phase fidelity, the sound's position sense and the sound's position movement feeling are very accurate (because the phase parameter determines the sound position). Moreover, the respective positions of the sounds emitted by many instruments in music are not easy to be confused, so that the music is clear and transparent (the music has a good resolution).
