Amplifier For Line Array Speaker
10Q Black Capacitor Stage Audio 4 Channel Amplifier
Item No.: DS-10Q Black Capacitor
Model: DS-10Q Black Capacitor
8Ω Stereo Power (RMS): 1,350W X 4CH
4Ω Stereo Power (RMS): 2,100W X 4CH
Certification: CE, ROHS
Warranty: 3 Years
Special service: OEM service offered
8Ω Stereo Power (RMS): 1,350W X 4CH
4Ω Stereo Power (RMS): 2,100W X 4CH
Certification: CE, ROHS
Warranty: 3 Years
Special service: OEM service offered
Description
| FP6000Q | FP8000Q | FP10000Q | FP20000Q | FP22000Q | |
| Channels | 4-Channel Power Amplifier | ||||
| Class | Class TD Power Amplifier | ||||
| 8Ω Stereo Power (RMS) | 625WX4 | 1000WX4 | 1350WX4 | 2200WX4 | 2500WX4 |
| 4Ω Stereo Power (RMS) | 1300WX4 | 1600WX4 | 2100WX4 | 4000WX4 | 4650WX4 |
| 8Ω Bridged Power(RMS) | 2500WX2 | 3200WX2 | 4200WX2 | 8000WX2 | 9300WX2 |
| 4Ω Bridged Power(RMS) | 3000WX2 | 3800WX2 | 5000WX2 | 9000WX2 | 15000WX2 |
| FP7000 | FP9000 | FP14000 | FP24000 | ||
| Channel | 2 Channel Power Amplifier | ||||
| Class | Class TD Power Amplifier | ||||
| 8Ω Stereo Power (RMS) | 1500WX2 | 1800WX2 | 2400WX2 | 4200WX2 | |
| 4Ω Stereo Power (RMS) | 2800WX2 | 3000WX2 | 4400WX2 | 7500WX2 | |
| 8Ω Bridged Power (RMS) | 5600W | 6000W | 8800W | / | |
| 4Ω Bridged Power (RMS) | 7000W | 9000W | 14000W | / | |
DS-10Q amplifier performance description

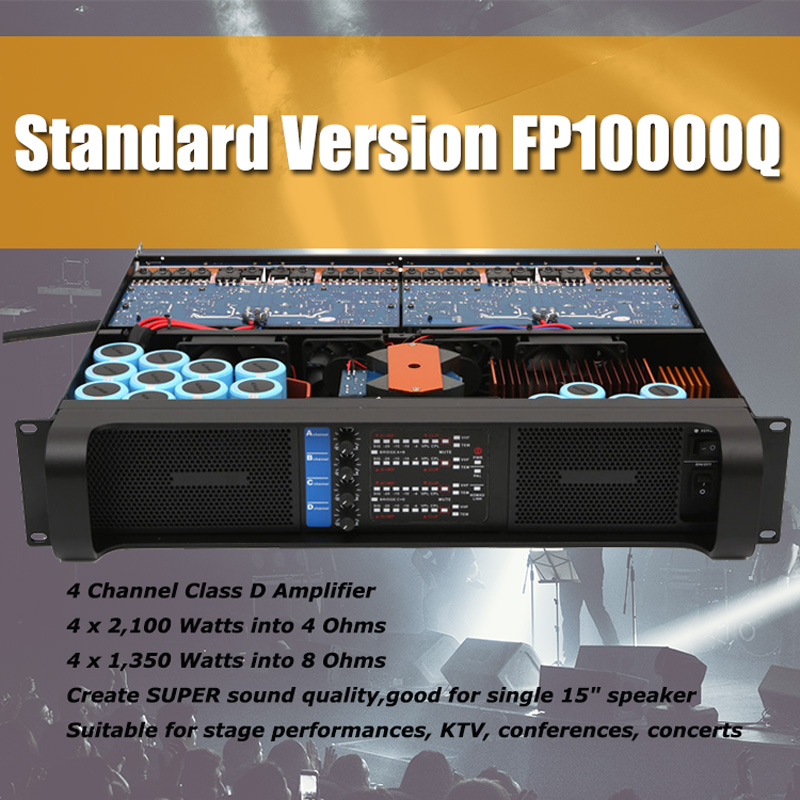

-4 Channel Class TD Switching power audio amplifier.-4* 2100 Watts into 4Ohms, 4* 1350 Watts into 8Ohms.
-Create SUPER sound quality.
-Good for single 15"/dual 15" speaker.
-Separately controllable on Gain.
-Scalable Voltage Peak Limiter (VPL).
-Bridge-mode operation for Touring Applications.
-Comprehensive protection scheme.

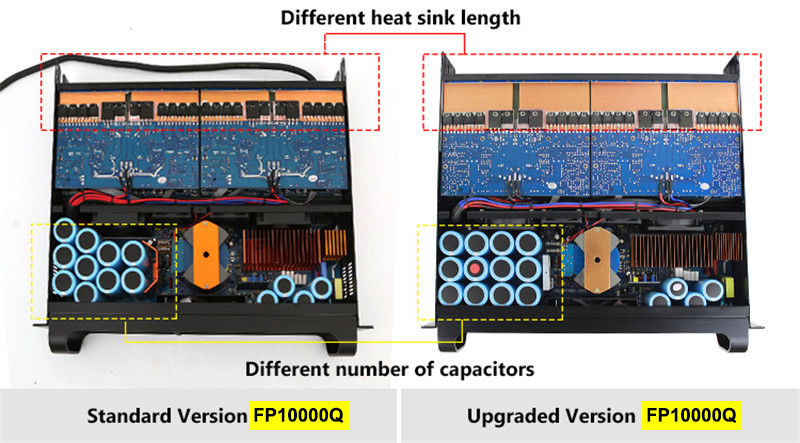

-Extended heatsink to 69 mm.

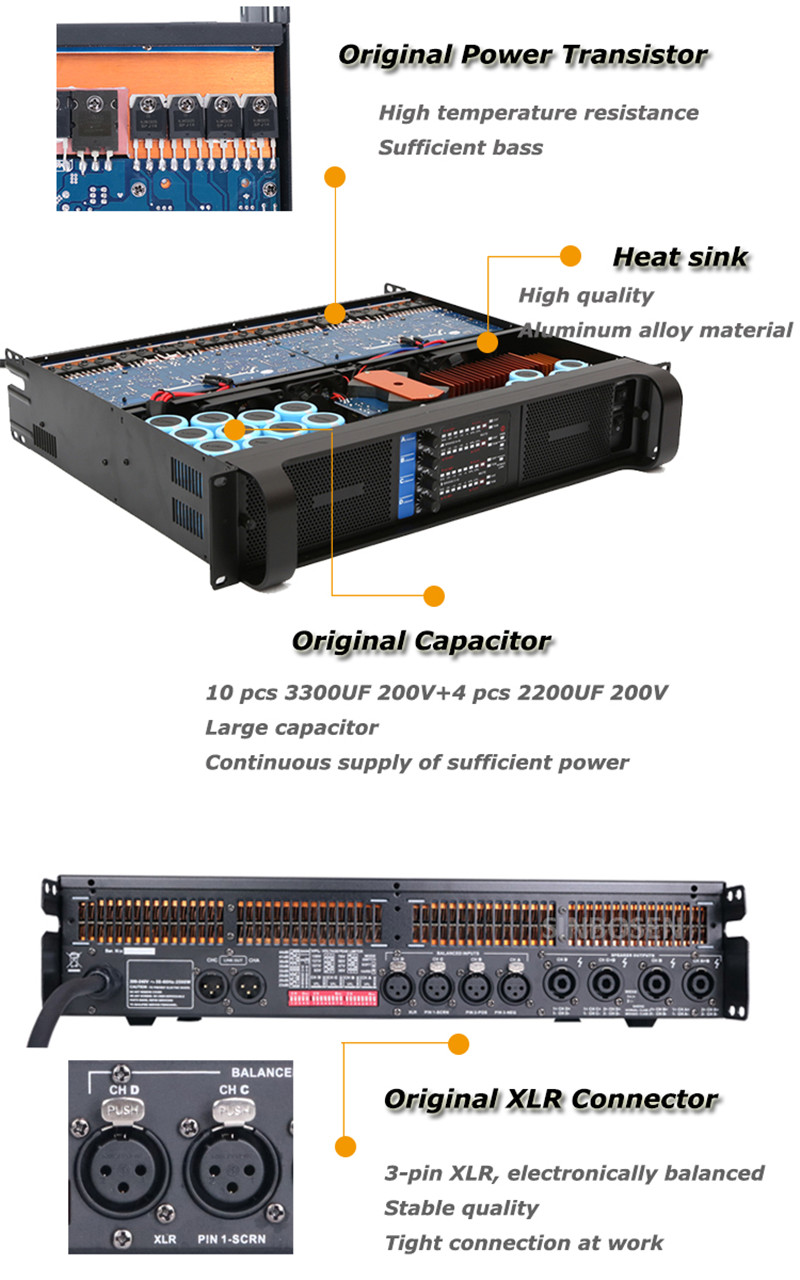

-Use high-quality capacitor 3300uf 200V.

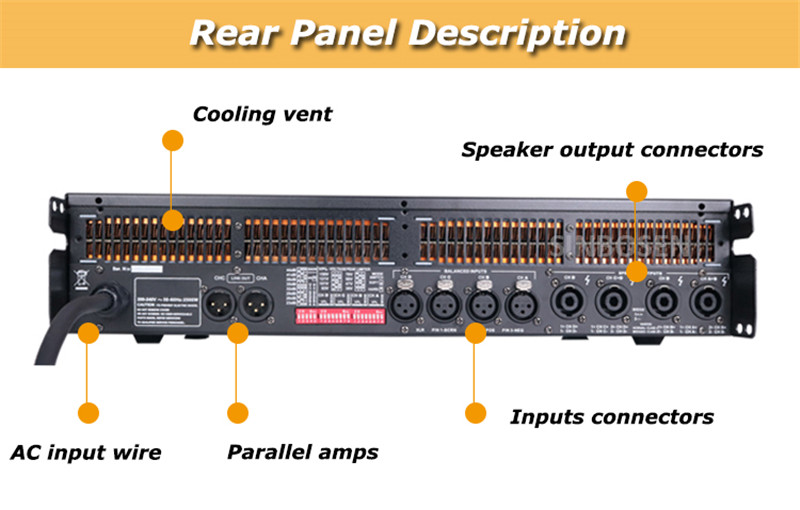

-High-quality speakon connectors.
-High-quality fans from TAIWAN.
