DSP Amp For Line Array Speaker
Sinbosen DSP6000Q 1300w 4 channel professional power DSP amplifier
Item No.: DSP6000Q
Model: DSP6000Q
Channel: 4 channel power amplifier
Output Power:
8Ω Stereo Power (RMS): 625W X 4CH
4Ω Stereo Power (RMS): 1,300W X 4CH
Class: TD
Certification: CE, ROHS, TUV
Warranty: 3 Years
Special service: OEM service offered
Channel: 4 channel power amplifier
Output Power:
8Ω Stereo Power (RMS): 625W X 4CH
4Ω Stereo Power (RMS): 1,300W X 4CH
Class: TD
Certification: CE, ROHS, TUV
Warranty: 3 Years
Special service: OEM service offered
Description
Sinbosen Audio DSP Series Amplifier
| DSP10000Q | DSP12000Q | DSP20000Q | DSP6000Q | ||||
| 8 ohm Stereo Power (RMS) | 1300WX4 | 1500WX4 | 2200WX4 | 625WX4 | |||
| 4 ohm Stereo Power (RMS) | 2100WX4 | 2800WX4 | 4000WX4 | 1300WX4 | |||
| 2 ohm Stereo Power (RMS) | 2500WX4 | 3500WX4 | 4500WX4 | 1500WX4 | |||
| 8 ohm Bridged Power (RMS) | 4200WX2 | 5600WX2 | 8000WX2 | 2500WX2 | |||
| 4 ohm Bridged Power (RMS) | 5000WX2 | 7000WX2 | 9000WX2 | 3000WX2 | |||
| Frequency Response(+o/-0.3dB,1W/8Ω)： | 20 Hz - 34 kHz | ||||||
| THD 20 Hz - 20 kHz for 1W: | <0.1% | ||||||
| Signal-to-Noise Ratio: | >112 dBA | ||||||
| Channel separation (Crosstalk) at 1 kHz ： | >70 dB | ||||||
| Input Connectors (per channel)： | 3 pin XLR, electronically balanced | ||||||
| Output Connectors (per channel)： | Binding Posts 2-pole | ||||||
| Class： | TD | ||||||
| TourClass Protection： | ACL, IGM, AutoRamp, short circuit, DC voltage, turn on/off transient, current inrush, sub/ultrasonic input | ||||||
| Operating voltage, 220V / 110V nominal： | 180-240 V / 90-130 V selectable | ||||||
| Voltage Gain(dB)： | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable | ||||||
| Input impedance： | 20 kOhm | ||||||
| Level adjustment (per ch.)： | Front panel potentiometer, 31 positions detented from -inf to 0 dB | ||||||
Feature:
►4 Channel Class TD Switching power amplifier with DSP
►4 x 1,300 Watts into 4 Ohms, 4 x 625 Watts into 8 Ohms
►Create SUPER sound quality
►Control the sound effect by Touch on front 4" LED display screen
►Or control the sound effect by Computer
►Simple DSP software,no need install,easy operate it
►Bridge-mode operation for Touring Applications
►Comprehensive protection scheme
►Use Original Siemens high quality capacitor 3300uf 200V
►Use Original ONSEMI transistor
►Neutrik XLR*/Speakon connectors
►Extended heatsink board to 94 mm
►Five Fan support to cooling
►4 x 1,300 Watts into 4 Ohms, 4 x 625 Watts into 8 Ohms
►Create SUPER sound quality
►Control the sound effect by Touch on front 4" LED display screen
►Or control the sound effect by Computer
►Simple DSP software,no need install,easy operate it
►Bridge-mode operation for Touring Applications
►Comprehensive protection scheme
►Use Original Siemens high quality capacitor 3300uf 200V
►Use Original ONSEMI transistor
►Neutrik XLR*/Speakon connectors
►Extended heatsink board to 94 mm
►Five Fan support to cooling

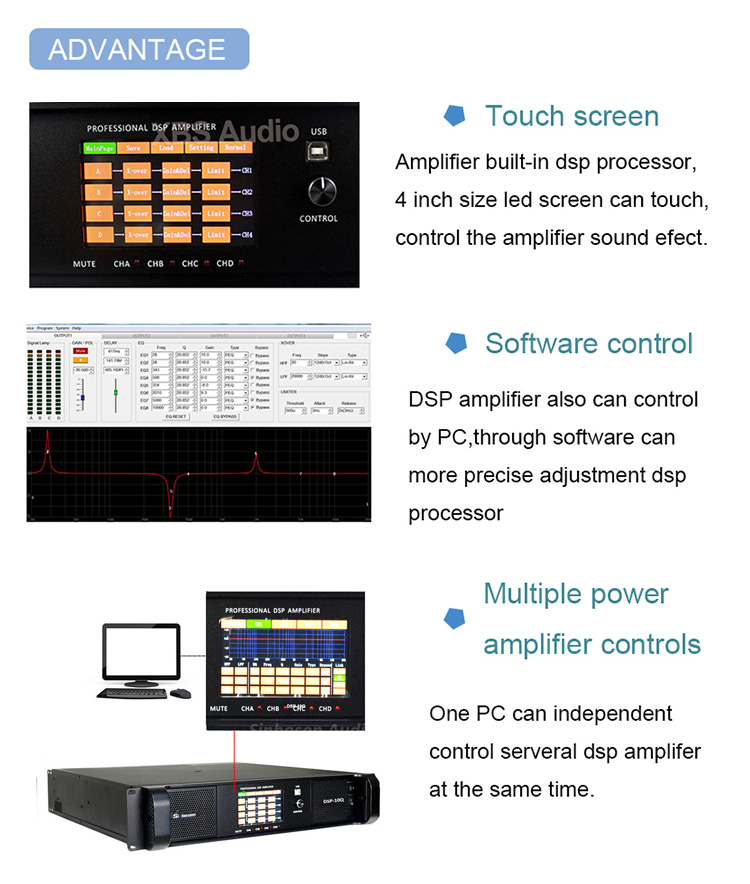

| Touch screen | Software control | Multiple power amplifier controls |
| Amplifier built-in processor,4 inch size led screen can touch,control the amplifier sound effect | DSP amplifier also cintrol by PC,through software can more precise adjustment dsp processor | One PC can independent control serveral dsp amplifier at the same time |
 |
 |
 |
 |
 |
 |
 |
 |
 |
