Active Speaker
Sinbosen Dj Powered Speaker LA-208B(DSP) Professional Dual 8 inch Line Array Speaker
Item No.: LA-208B
Brand: Sinbosen
Type: LA-208B(DSP)
Usage: Hi-Fi, AV, KTV System, Stage, Professional Performance
Frequency Response: 70Hz - 20KHz
Line Array: Dual 8 inch Line Array
2 Type: Active/passive
Warrenty: 3 Years
Special Service: OEM Service Offered
Type: LA-208B(DSP)
Usage: Hi-Fi, AV, KTV System, Stage, Professional Performance
Frequency Response: 70Hz - 20KHz
Line Array: Dual 8 inch Line Array
2 Type: Active/passive
Warrenty: 3 Years
Special Service: OEM Service Offered
Description

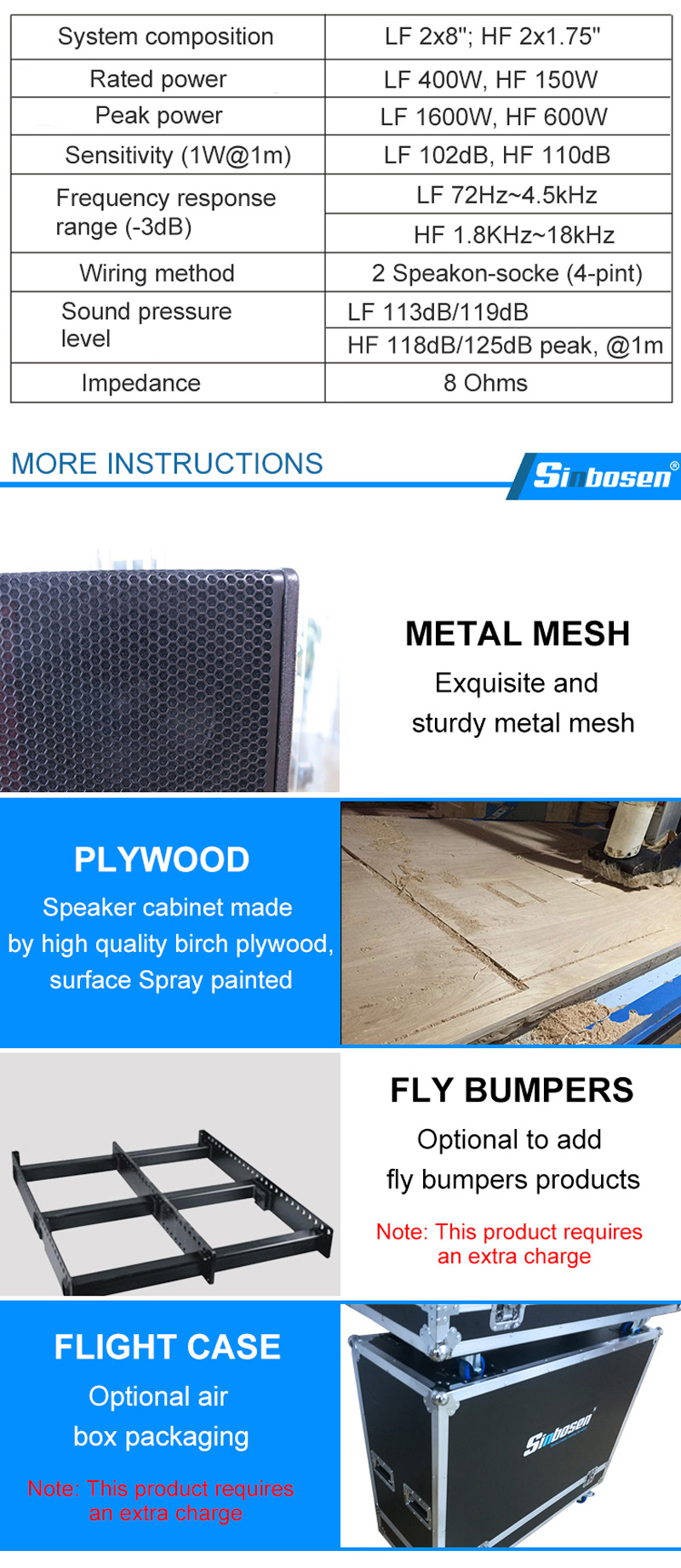

Technical Parameters
| SA-208B(DSP) | Dual 8 inch Line Array Speaker |

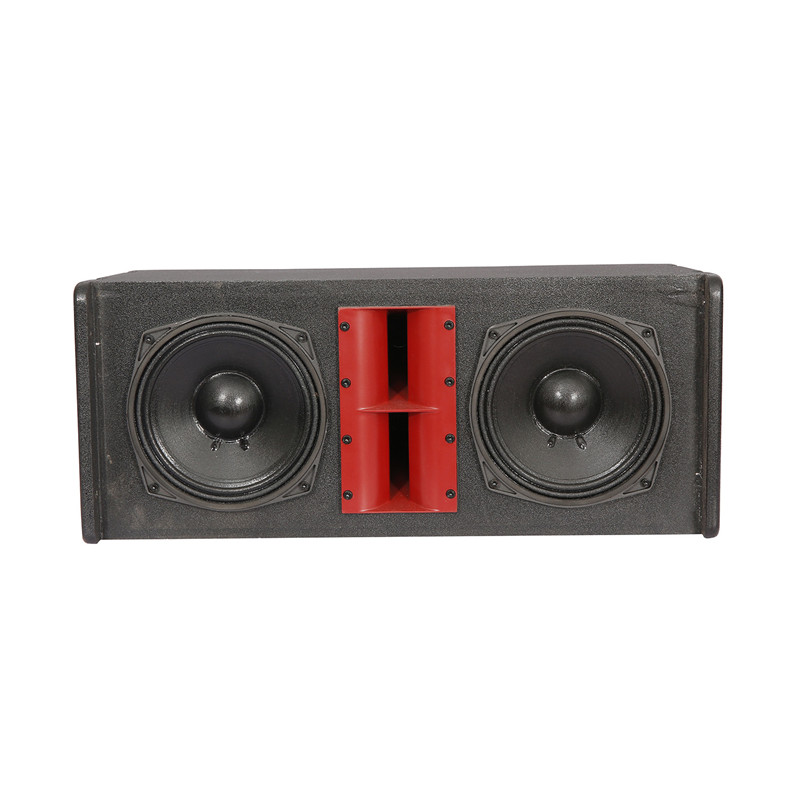

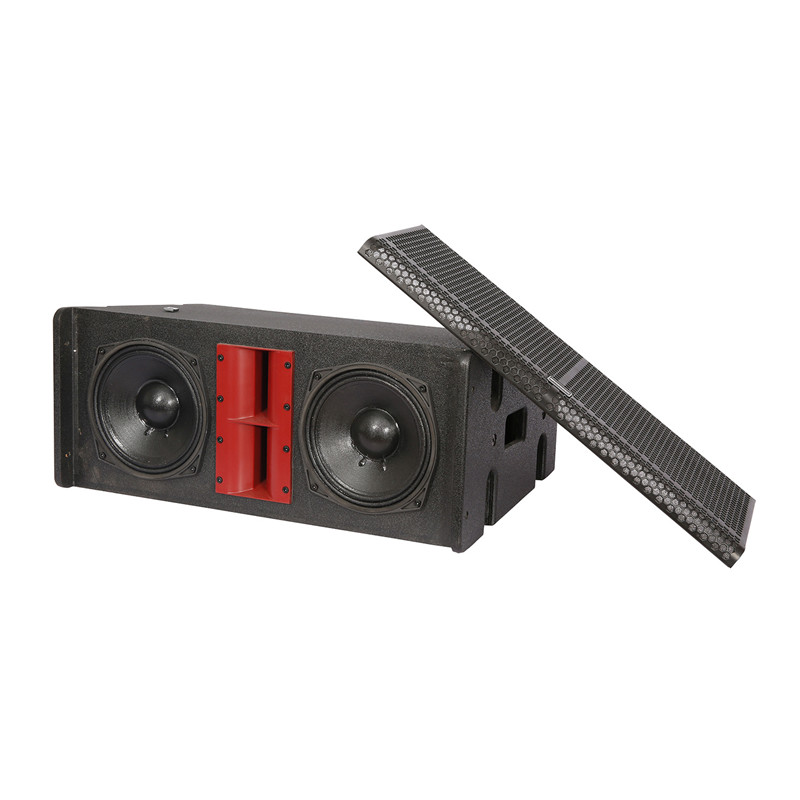

| Components | 2×8"MF +2 X1.75"Hi |
| MF rated Power/ Peak | 400W/8Ω 1600W / Peak |
| HF rated Power/ Peak | 150W/8Ω 600W/ Peak |
| Sensitivity | 110dB |
| Maximum Peak SPL | 133dB peak,@1m |
| Frequency Response | 70Hz~20KHz (±3dB) |
| Speaker Radiation Angle | 1KHz)(H×V):120°× 20° |
| Color | Black |
| NW | 23kg |
| Dimension(L/W/H) | 630X380X270mm |
| Speaker cabinet made by high quality brich plywood, surface Sprayed painted,aluminium alloy speaker hanger | |

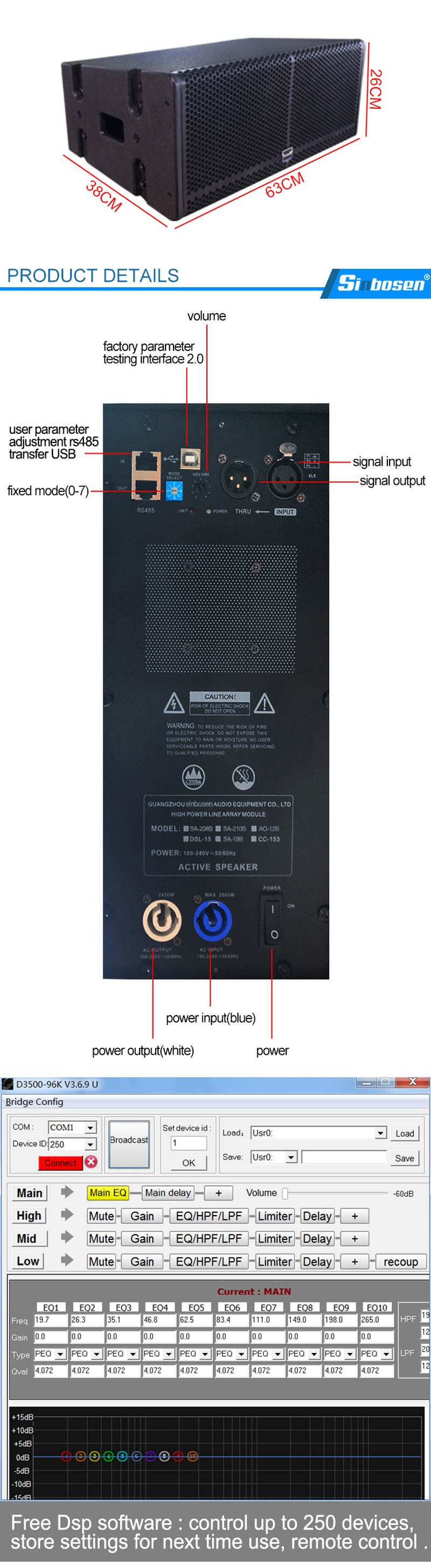

Feature: Fixed mode(0-7)
Attention: choosing different mode indifferent occasion.

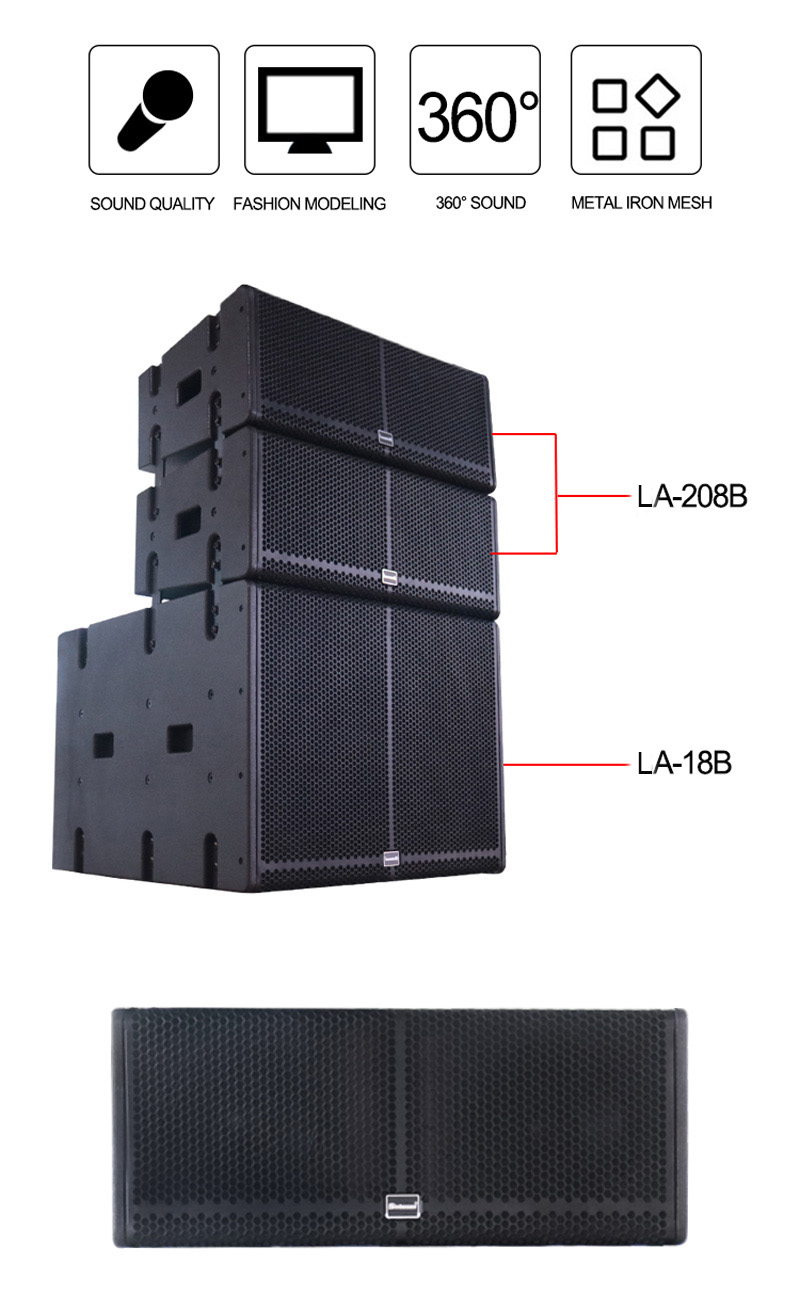

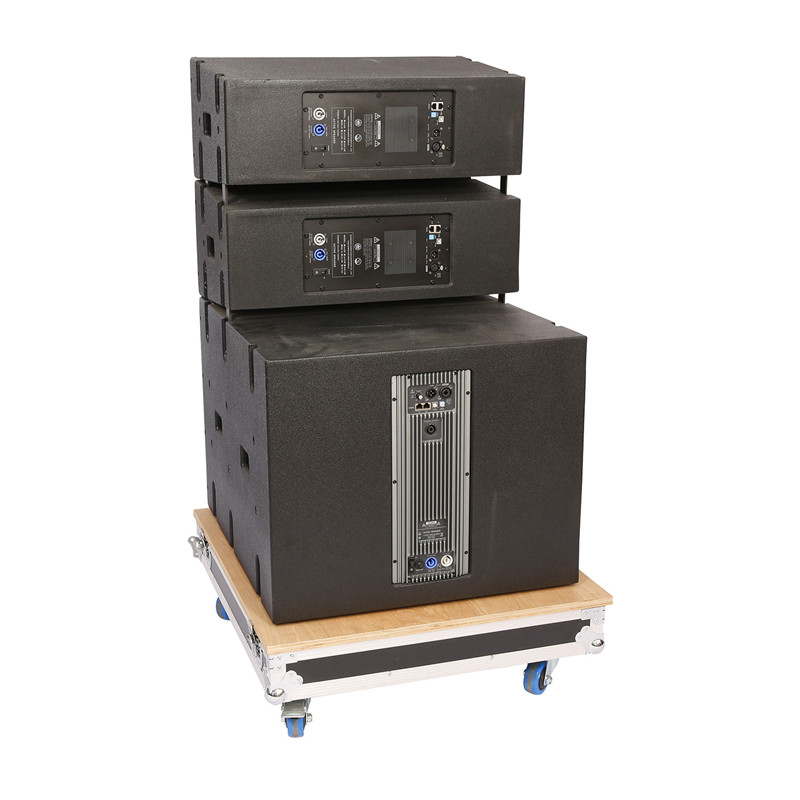

mode0:SA-208B(DSP)x2 + SA-18B(DSP)x1 Full frequency delay (floor stand)
mode1:SA-208B(DSP)x2 + SA-18B(DSP)x1 LF delay(floor stand)
mode2:SA-208B(DSP)x4 + SA-18B(DSP)x1 Full frequency delay (hanging)
mode3:SA-208B(DSP)x4 + SA-18B(DSP)x1 LF delay(hanging)
mode4:SA-208B(DSP)x4 + SA-18B(DSP)x1 no delay(hanging)
mode5:SA-208B(DSP)x4 + SA-18B(DSP)x1 speech(meeting)
mode6:SA-208B(DSP)x2 + SA-18B(DSP)x1 no delay(hanging)
mode7:SA-208B(DSP)x2 + SA-18B(DSP)x1 speech(meeting)
