Sinbosen professional antenna distribution system wireless microphone HG-890

Item No.: HG-890

Brand: Sinbosen
Model: HG-890
Communication: Wireless
Frequency Range(MHz): 500-950MHz
Channel：4
Power consumption:170mA
Noise ratio：4.0 db type (Center band)
Impedance；50Ω
Terms of Payment:Western Union, MoneyGram, T/T, Paypal

INQUIRY PDF Format

Description

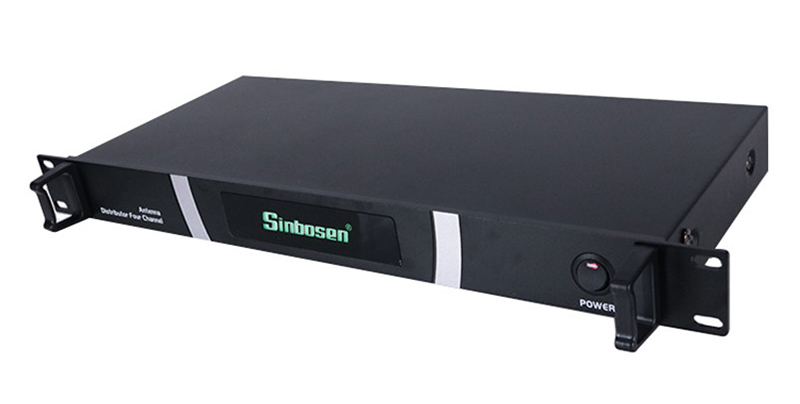

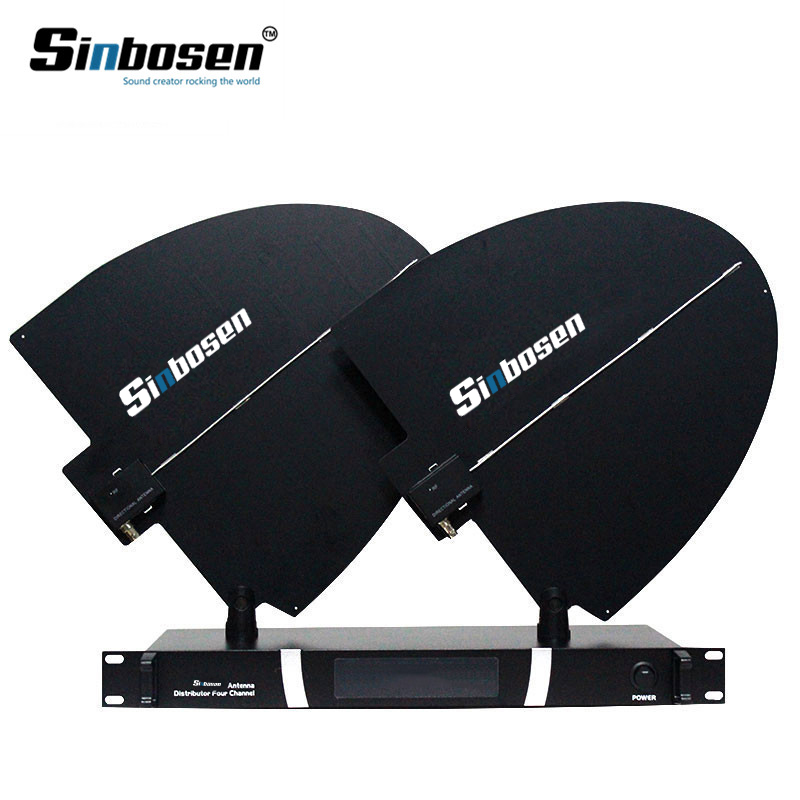

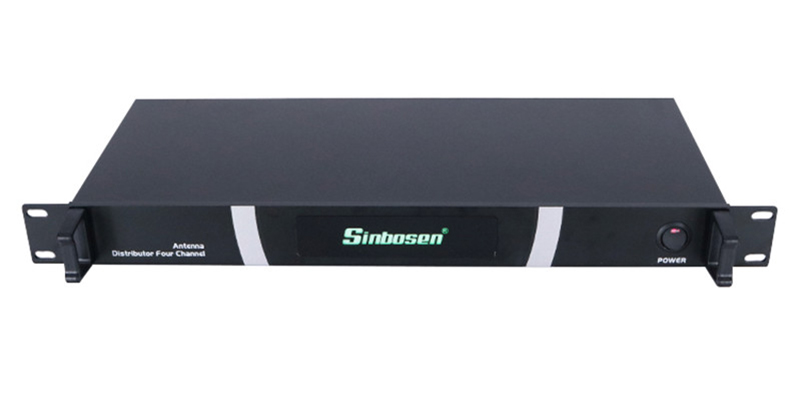

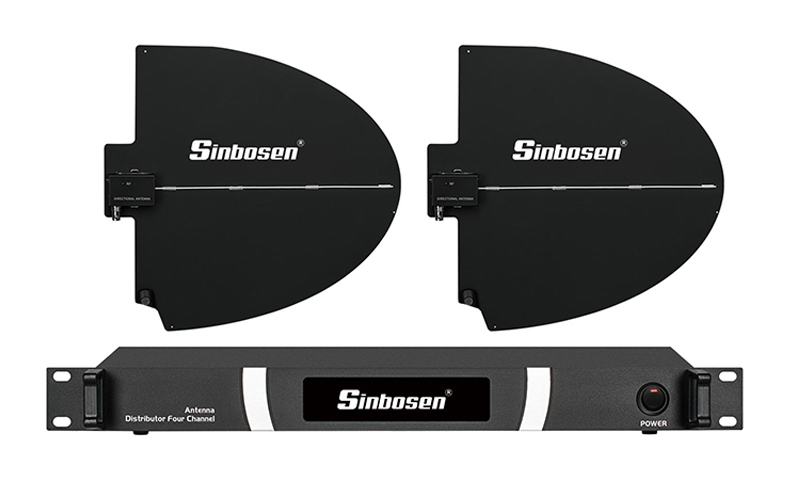

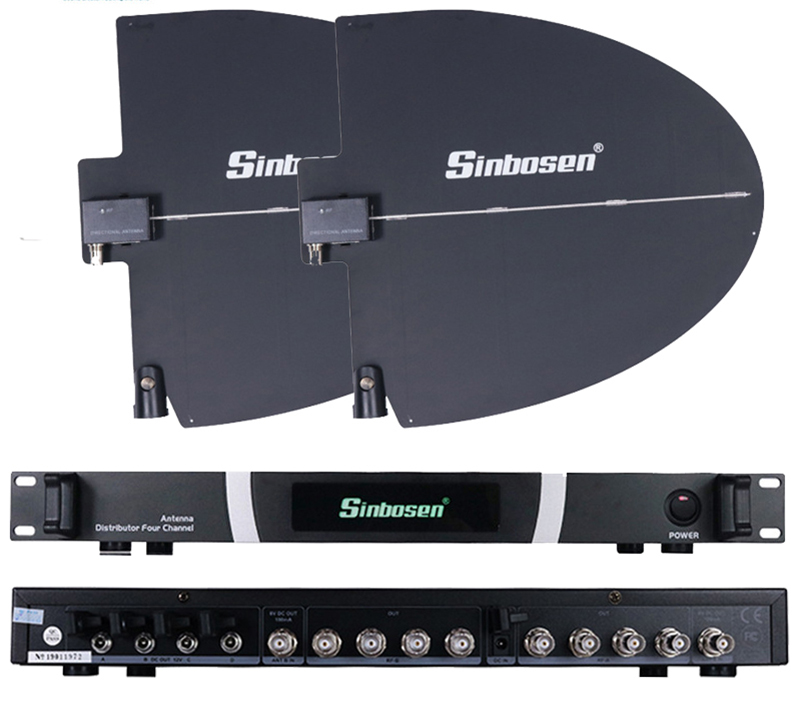

Sinbosen's Antenna Distributor system wireless microphone is designed for the long distance reception and transmitting, it is easier to carry and install. Can use for gymnasium, concert, theater, and large performance venues,etc.

Frequency range	500-950MHz
Input truncation point	+ 22dBm
Noise ratio	4.0 db type (Center band)
Gain	+ 6-9dB (Center band)
Output impedance	15dBmin
Impedance	50Ω
Bandwidth	450MHz

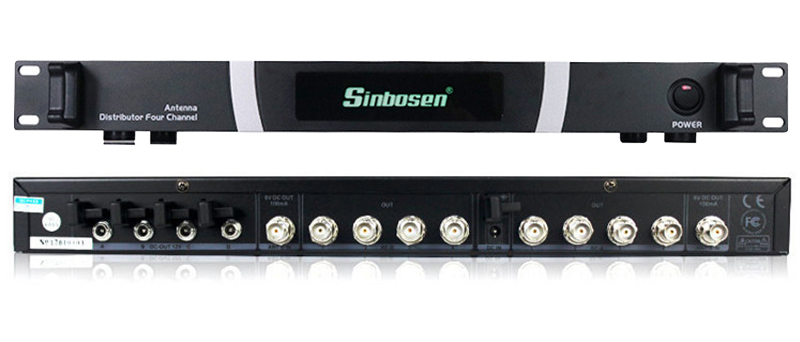

Socket	BNC female
Power supply	100-240V / 50 / 60Hz
Power consumption	170mA

Feature:

Using 2-4 pcs UHF wireless series or other series of all kinds of automatic selecting signal receiver , sharing a group of antennas to simplify the antenna assembly works to enhance the receiving distance and efficiency
Using the latest design of high dynamic range and low noise of the active component and active feedback current bias , with super low in the distortion can be used to eliminate the interference of mixing in multi channels , and the output gain is equal to 1
The antenna socket can apply directly in the frequency range of configuration of single pole antenna, coaxial antenna, antenna extension.
Delta group and logarithmic directional antenna group.
The antenna input socket power supply with strong wave, extend the antenna group can be directly connected with antenna booster and a logarithmic directional antenna array with built-in wave generator
The four groups of power output: 12v /600~1000mA
