Antenna Amplifier

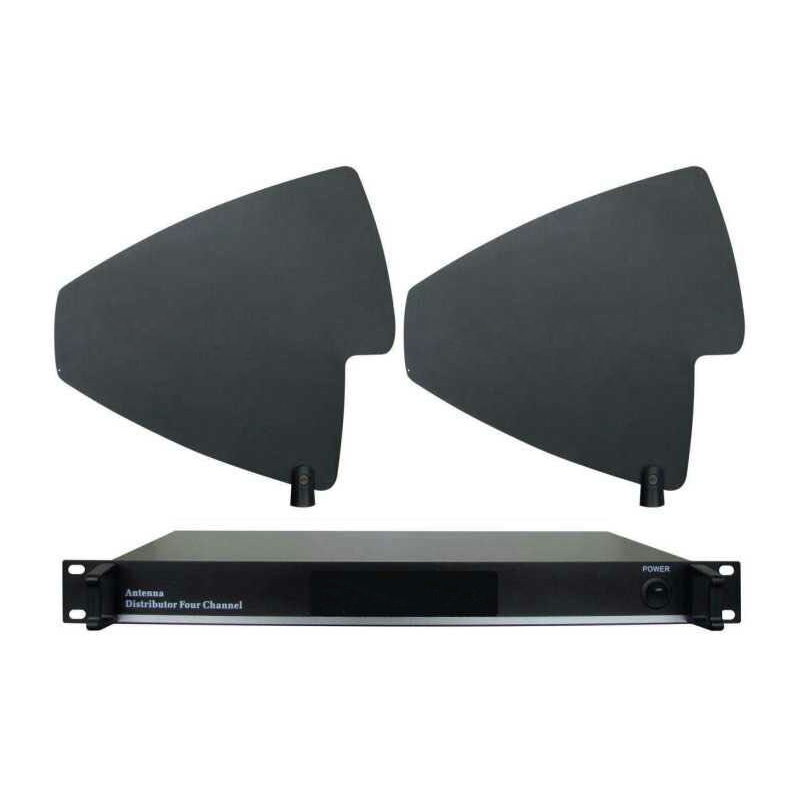

4 Channels 500-950MHz Wireless Microphone System Antenna Amplifier
Item No.: 880
Brand: Sinbosen
Model: 880
Communication: Wireless
Frequency Range(MHz): 500-950MHz
Channel：4
Power consumption:170mA
Noise ratio：4.0 db type (Center band)
Impedance；50Ω
Terms of Payment:Western Union, MoneyGram, T/T, Paypal
Model: 880
Communication: Wireless
Frequency Range(MHz): 500-950MHz
Channel：4
Power consumption:170mA
Noise ratio：4.0 db type (Center band)
Impedance；50Ω
Terms of Payment:Western Union, MoneyGram, T/T, Paypal
Description
Sinbosen's Antenna Distributor system wireless microphone is designed for the long distance reception and transmitting, it is easier to carry and install. Can use for gymnasium, concert, theater, and large performance venues,etc.
| Frequency range | 500-950MHz |
| Input truncation point | + 22dBm |
| Noise ratio | 4.0 db type (Center band) |
| Gain | + 6-9dB (Center band) |
| Output impedance | 15dBmin |
| Impedance | 50Ω |
| Bandwidth | 450MHz |
| Socket | BNC female |
| Power supply | 100-240V / 50 / 60Hz |
| Power consumption | 170mA |
Feature:
- Using 2-4 pcs UHF wireless series or other series of all kinds of automatic selecting signal receiver , sharing a group of antennas to simplify the antenna assembly works to enhance the receiving distance and efficiency
- Using the latest design of high dynamic range and low noise of the active component and active feedback current bias , with super low in the distortion can be used to eliminate the interference of mixing in multi channels , and the output gain is equal to 1
- The antenna socket can apply directly in the frequency range of configuration of single pole antenna, coaxial antenna, antenna extension.
- Delta group and logarithmic directional antenna group.
- The antenna input socket power supply with strong wave, extend the antenna group can be directly connected with antenna booster and a logarithmic directional antenna array with built-in wave generator
- The four groups of power output: 12v /600~1000mA
 |
 |
 |
 |
 |
 |
