Amplifier For Line Array Speaker
Power Amplifier 1000 Watt Pa System Professional Audio Amplifier
Item No.: DS-8Q
Model: DS-8Q
8Ω Stereo Power (RMS): 1,000W X 4CH
4Ω Stereo Power (RMS): 1,600W X 4CH
Certification: CE, ROHS
Warranty: 3 Years
Special service: OEM service offered
8Ω Stereo Power (RMS): 1,000W X 4CH
4Ω Stereo Power (RMS): 1,600W X 4CH
Certification: CE, ROHS
Warranty: 3 Years
Special service: OEM service offered
Description
| DS-8Q | DS-9K | DS-14K | DS-6Q | DS-7K | DS-20Q | DS-22Q | |
| 8 ohm Stereo Power (RMS) | 1000WX4 | 1600WX2 | 2400WX2 | 625WX4 | 1450WX2 | 2200WX4 | 2500WX4 |
| 4 ohm Stereo Power (RMS) | 1600WX4 | 3000WX2 | 4400WX2 | 1250WX4 | 2800WX2 | 4000WX4 | 4650WX4 |
| 8 ohm Bridged Power (RMS) | 3200WX2 | 6000W | 8800W | 2500WX2 | 5600W | 8000WX2 | 9300WX2 |
| 4 ohm Bridged Power (RMS) | 3800WX2 | 9000W | 14000W | 3000WX2 | 7000W | 9000WX2 | 15000WX2 |
| Frequency Response(+o/-0.3dB,1W/8Ω)： | 20 Hz - 34 kHz | ||||||
| THD 20 Hz - 20 kHz for 1W: | <0.1% | ||||||
| Signal-to-Noise Ratio: | >112 dBA | ||||||
| Channel separation (Crosstalk) at 1 kHz ： | >70 dB | ||||||

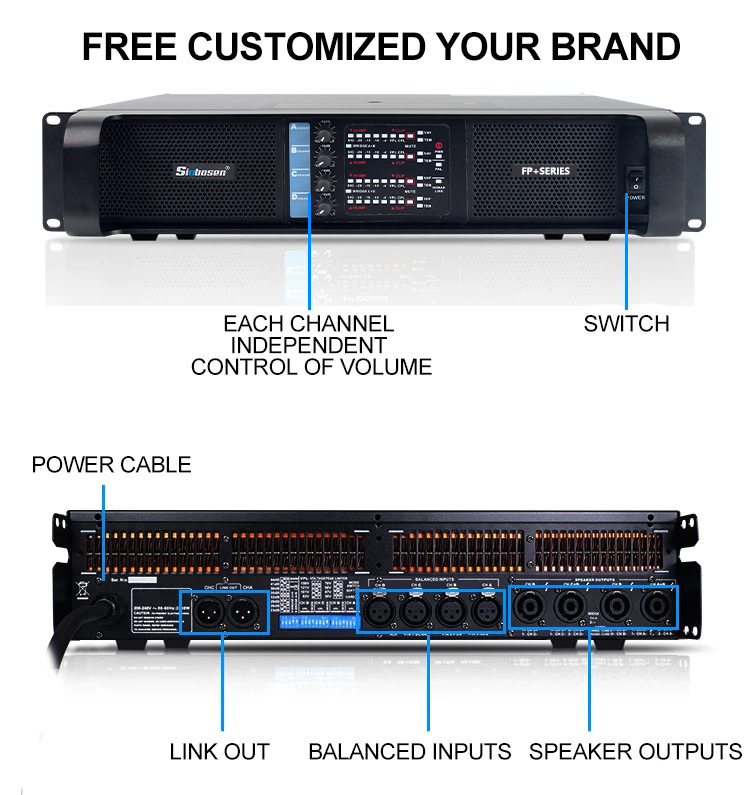

| Input Connectors (per channel)： | 3 pin XLR, electronically balanced | ||||||
| Output Connectors (per channel)： | Binding Posts 2-pole | ||||||
| Class： | TD | ||||||
| TourClass Protection： | ACL, IGM, AutoRamp, short circuit, DC voltage, turn on/off transient, current inrush, sub/ultrasonic input | ||||||
| Operating voltage, 220V / 110V nominal： | 180-240 V / 90-130 V selectable | ||||||
| Voltage Gain(dB)： | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable | ||||||
| Input impedance： | 20 kOhm | ||||||
| Level adjustment (per ch.)： | Front panel potentiometer, 31 positions detented from -inf to 0 dB | ||||||
►4 Channel Class TD Switching power amplifier.
►4*1600 Watts into 4Ohms,4*1000 Watts into 8Ohms.
►Creat SUPER sound quality,good for 15" speaker.
►Separately controllable on Gain
►Scalable Voltage Peak Limiter (VPL)
►Bridge-mode operation for Touring Applications
►Comprehensive protection scheme
►Extended heatsink to 69 mm.

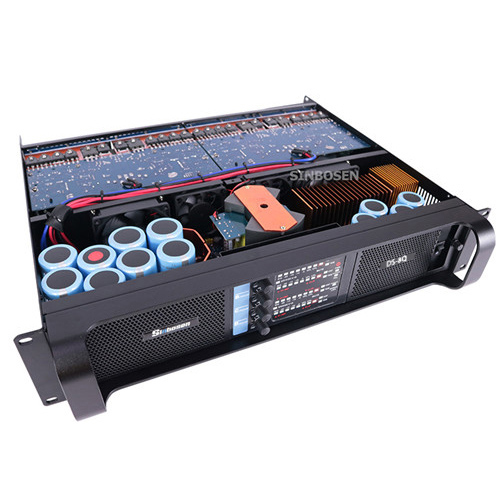

►Use Original Siemens high-quality capacitor 3300uf 200V.
►Use Original ONSEMI transistor.
►Neutrik XLR*/speakon connectors.
►High quality fans form TAIWAN.
 |
 |
 |
 |
 |
