Sinbosen professional audio sound system 8+2 channels power sequence controller

Sinbosen professional audio sound system 8+2 channels power sequence controller

Item No.: AS-01
Model: AS-01
Type: Power Sequence controller
Channels: 8 +2 channels
Rated Voltage: AC90-260V 50-60HZ
Application: Concert, stage, KTV, Home Theatre
Warranty: 2 years
Description

Product description



Suitable Home/DJ performance/Club/Studio/Karaoke/Conference /Theater

Feature :

screen shows working status
setup password boot
COM central control (command control) or with software control
The turn on time interval of each channel can be adjusted ,Multiple machines can be used at the same time

Specification :

Output power socket Spec :Flame retardant ABS material, can withstand up to 13A current phosphor copper material, standard universal socket
Control software and support central control function and ID quantity allocation: with the instruction code and control software, support central control


Product name Power sequencer

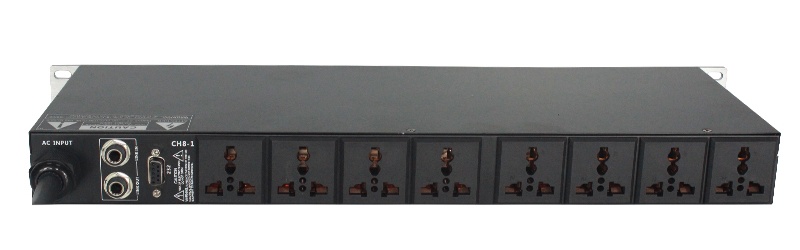

Number of channels   8 +2 channels Universal socket relay controlled
Power input AC90-260V 50-60HZ Dual-phase
Single power 2000W
Output power 13A universal socket
Output relay contact current 30A 277VAC
Main cable specification 3*4 square cable, length 1.5 meters
Chassis height 1U
