4 Ohms Stable Amplifier

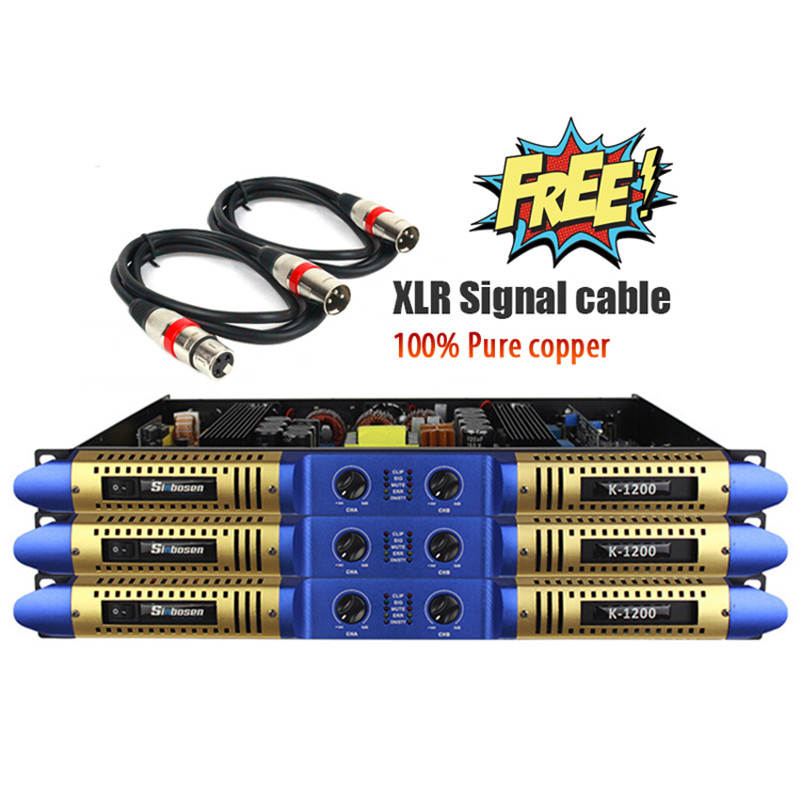

Sinbosen K-1200 1200W 1U class D 2 channel home audio amp digital amplifier
Item No.: K-1200
Model: K-1200
Channel: 2 channel power amplifier
Output Power:
8Ω Stereo Power (RMS): 1,200W X 2CH
4Ω Stereo Power (RMS): 1,850W X 2CH
Class: D
Certification: CE, ROHS, TUV
Warranty: 3 Years
Special service: OEM
Channel: 2 channel power amplifier
Output Power:
8Ω Stereo Power (RMS): 1,200W X 2CH
4Ω Stereo Power (RMS): 1,850W X 2CH
Class: D
Certification: CE, ROHS, TUV
Warranty: 3 Years
Special service: OEM
Description
| k-1200 | k-1000 | k-800 | |||||||
| 8 ohm Stereo Power (RMS) | 1200WX2 | 1000WX2 | 800WX2 | ||||||
| 4 ohm Stereo Power (RMS) | 1850WX2 | 1500WX2 | 1200WX2 | ||||||
| 2 ohm Stereo Power (RMS) | 2300WX2 | 2000WX2 | 1600WX2 | ||||||
| Power Type | Switching Power Supply | ||||||||
| Amplifier Type | Composite Feedback Control Class D | ||||||||
| Height | 1U | ||||||||
| Rate Output Voltage(THD+N<1%,1khz) | 100V RMS | ||||||||
| Power Specification | AC 90V-240V(+15%)45-65Hz | ||||||||
| Input Connectors | XLR(Female) | ||||||||
| Output Connectors | Speakon Block | ||||||||
| Noise insulation factor(1KHz) | >250 | ||||||||
| Input impedance | 20K ohms Balance,10K ohms Unbalanced | ||||||||
| Input sensitivity(1KHz) | 0.775V/26/32dB | ||||||||
| Input impedance | 20K (balance)/10k (imbalance) | ||||||||
| Cooling Type | Stepless Speed Regulation Cooling Fan,Air Flow From Front To Bcak | ||||||||
| Amplifier And Load Protection | Short Circuit,Thermal,Over current,DC voltage,Ultra High freuency protection | ||||||||
K-1200 is 2 channel 1U class Digital power amplifiers. It is popular among users at home and abroad because of their energy saving and small size and utilization rate of more than 97%.
K series amplifiers are 2-channels amplifiers with three models: K-800, K-1000 and K1200. A perfect Sound reinforcement used in multiple ranges of home and paging applications such as home, theater, office, malls.
►2 Channel Class D Digital power amplifier
►Mini 1U size,convenient for Touring Applications
►2 x 1,850 Watts into 4 Ohms, 2 x 1,200 Watts into 8 Ohms
►Net weight 3.8KG
►Advanced protection circuitry for short circuit, mismatched load, overheating and internal faults.
►Use NTC boot soft start.
►With PFC automatic voltage regulator circuit.
►Each channel has independent overpressure and overheating.
►load short-circuit protection.
►There is an automatic limiting function to prevent damage to the sounder.
►Volume step control.
► Balanced input XLR stereo (two channels), stereo and bridge modes of operation.
