Amplifier For Subwoofer

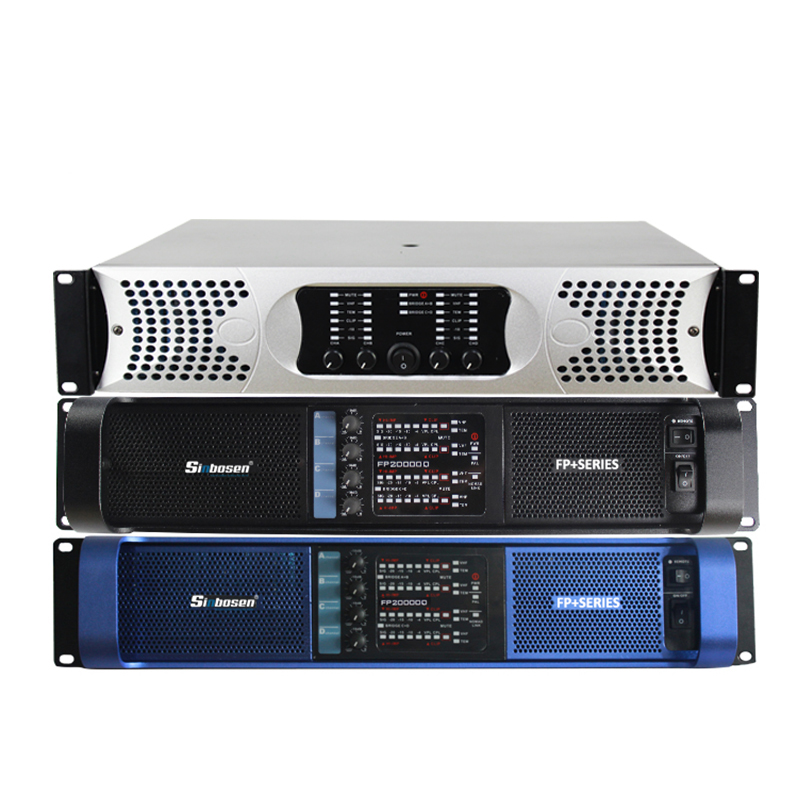

Hot sale Sinbosen 4000 Watt FP20000Q power amplifier price for dual best 18 inch subwoofer
Item No.: FP20000Q
Model: FP20000Q
Channel: 4 channel power amplifier
Output Power:
8Ω Stereo Power (RMS): 2,250W X 4CH
4Ω Stereo Power (RMS): 4,000W X 4CH
Class: Class TD Power Amplifier
Certification: CE, ROHS, TUV
Warranty: 3 Years
Special service: OEM service
Channel: 4 channel power amplifier
Output Power:
8Ω Stereo Power (RMS): 2,250W X 4CH
4Ω Stereo Power (RMS): 4,000W X 4CH
Class: Class TD Power Amplifier
Certification: CE, ROHS, TUV
Warranty: 3 Years
Special service: OEM service
Description
| FP7000 | FP9000 | FP14000 | FP6000Q | FP10000Q | FP20000Q | FP22000Q | |
| 8 ohm Stereo Power (RMS) | 1500WX2 | 1800WX2 | 2400WX2 | 700WX4 | 1350WX4 | 2200WX4 | 2500WX4 |
| 4 ohm Stereo Power (RMS) | 2800WX2 | 3000WX2 | 4400WX2 | 1300WX4 | 2100WX4 | 4000WX4 | 4650WX4 |
| 8 ohm Bridged Power (RMS) | 5600W | 6000W | 8800W | 2500WX2 | 4200WX2 | 8000WX2 | 9300WX2 |
| 4 ohm Bridged Power (RMS) | 7000W | 9000W | 14000W | 3000WX2 | 5000WX2 | 9000WX2 | 15000WX2 |
| Frequency Response(+o/-0.3dB,1W/8Ω)： | 20 Hz - 34 kHz | ||||||
| THD 20 Hz - 20 kHz for 1W: | <0.1% | ||||||
| Signal-to-Noise Ratio: | >112 dBA | ||||||
| Channel separation (Crosstalk) at 1 kHz ： | >70 dB | ||||||
| Input Connectors (per channel)： | 3 pin XLR, electronically balanced | ||||||
| Output Connectors (per channel)： | Binding Posts 2-pole | ||||||
| Class： | TD | ||||||
| TourClass Protection： | ACL, IGM, AutoRamp, short circuit, DC voltage, turn on/off transient, current inrush, sub/ultrasonic input | ||||||
| Operating voltage, 220V / 110V nominal： | 180-240 V / 90-130 V selectable | ||||||
| Voltage Gain(dB)： | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable | ||||||
| Input impedance： | 20 kOhm | ||||||
| Level adjustment (per ch.)： | Front panel potentiometer, 31 positions detented from -inf to 0 dB | ||||||
Feature |

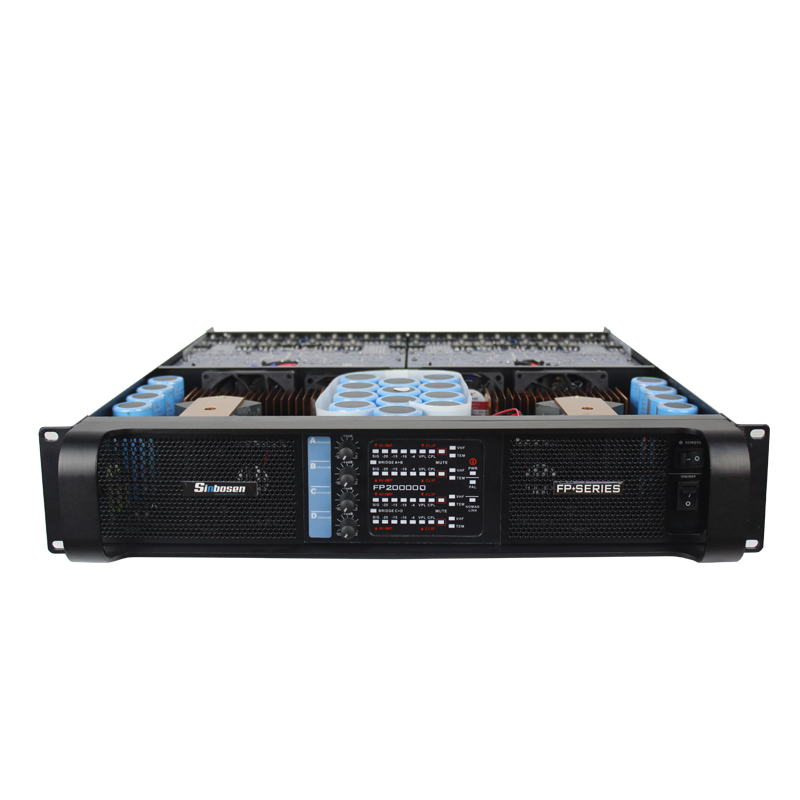

4 Channel Class TD Switching power amplifier. 4 x 4,000 Watts into 4 Ohms,4 x 2,200 Watts into 8 Ohms Neutrik XLR*/speakon connectors. Upgrade high-quality capacitor 3300uf 200V to 3600uf 200V Use Original ONSEMI transistor. Creat SUPER sound quality,good for dual 18 inch subwoofer. High quality fans from TaiWan. Extended heatsink board to 94 mm. Separately controllable on Gain. Scalable Voltage Peak Limiter (VPL). Bridge-mode operation for Touring Applications. Comprehensive protection scheme. |
||||||
| Question: | What subwoofers do you have now? How big is their power? Can your amplifier make your subwoofers the best sound? If not, try our FP20000Q! Its power 4,000 watts at 4 ohms, suitable for dual 18-inch subwoofers. |
Sinbosen: We use original "Siemens" capacitors. - 12pcs 3600uf/200V - 8pcs 2200uf/200V
Advantage: Large capacity, continuous supply of sufficient power.
Some factory: Use ordinary capacitors, it is unstable quality, the amplifier is prone to problems.
Sinbosen: We use Original Onsemi power transistor
Advantage: High temperature resistance, sufficient bass
Some factory: Use ordinary capacitors, looks cheap, easy to damage at work
Sinbosen: We use Original Neutrik XLR connector
Advantage: Stable quality, tight connection at work
Some factory: Use ordinary capacitors, looks bad quality, easy toloose
Some factory: Use ordinary capacitors, looks cheap, easy to damage at work
Sinbosen: We use Original Neutrik XLR connector
Advantage: Stable quality, tight connection at work
Some factory: Use ordinary capacitors, looks bad quality, easy toloose

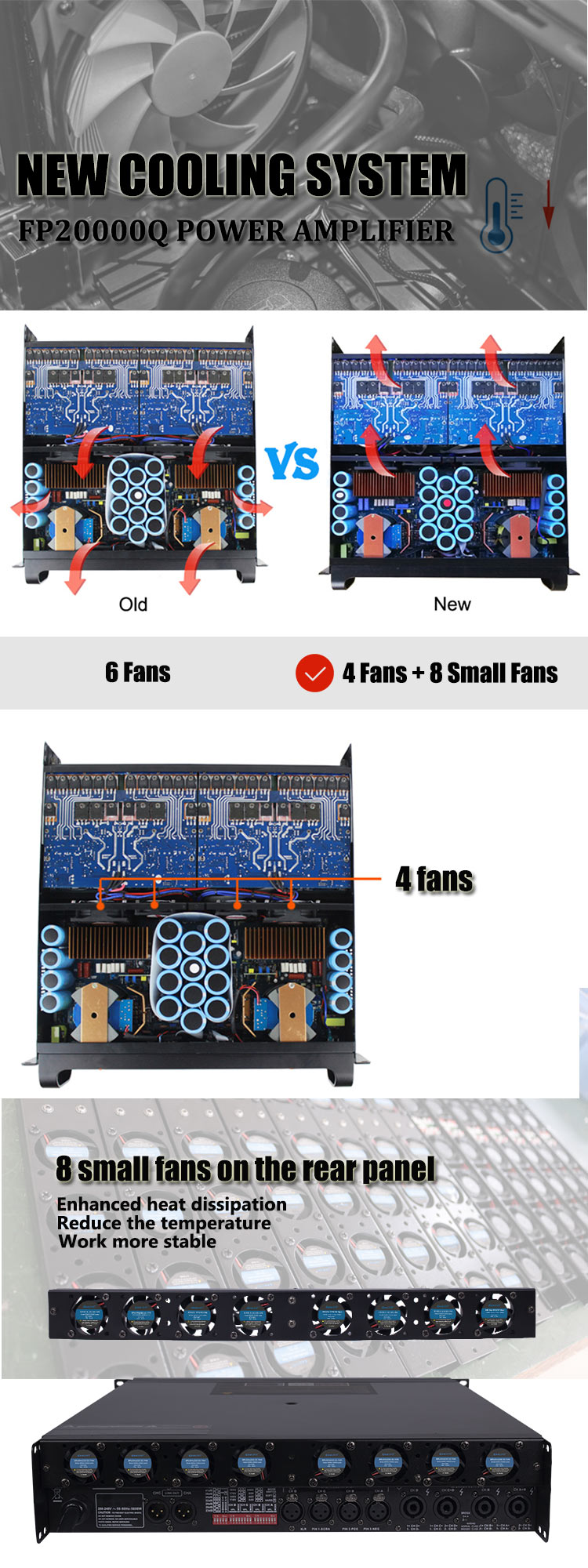

New heat sink
We upgrade cooling system, added 8 fans on the rear panel. Enhance the heat dissipation capability of the amplifier.
We upgrade cooling system, added 8 fans on the rear panel. Enhance the heat dissipation capability of the amplifier.
 |
 |
 |
 |
 |
 |
