DSP Amp For Subwoofer

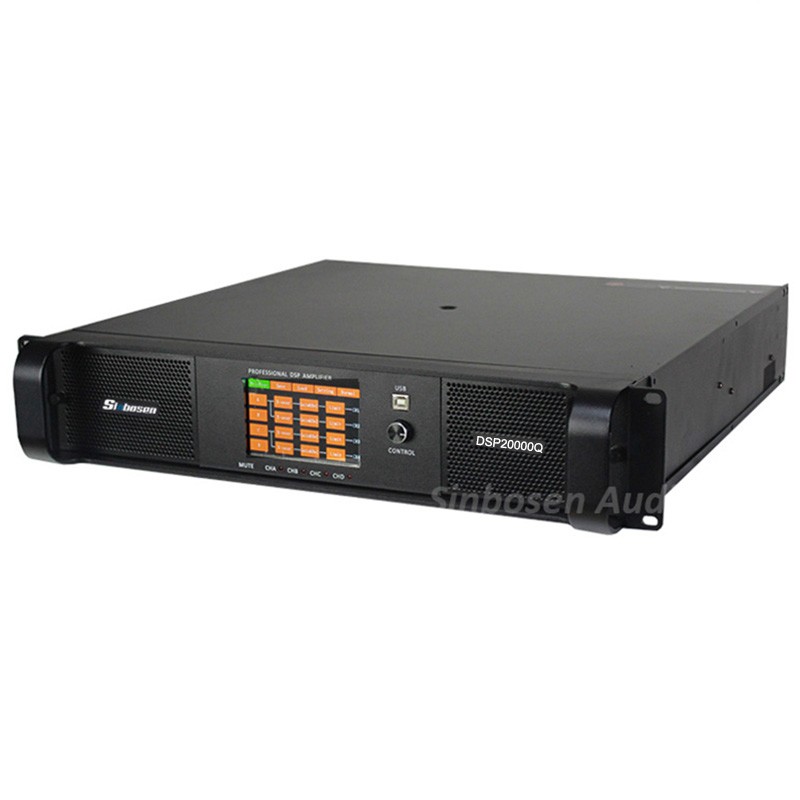

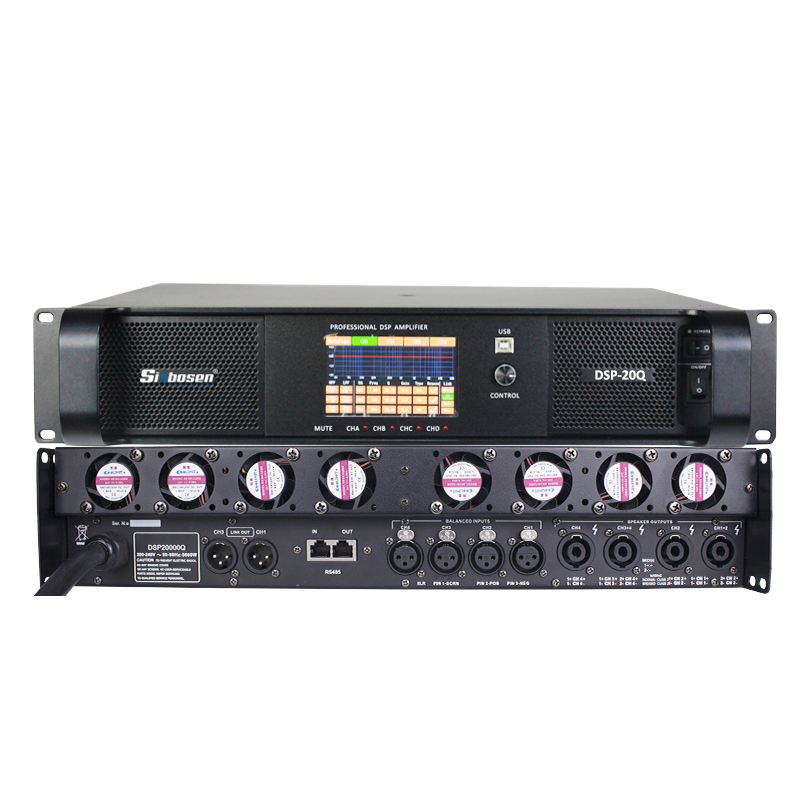

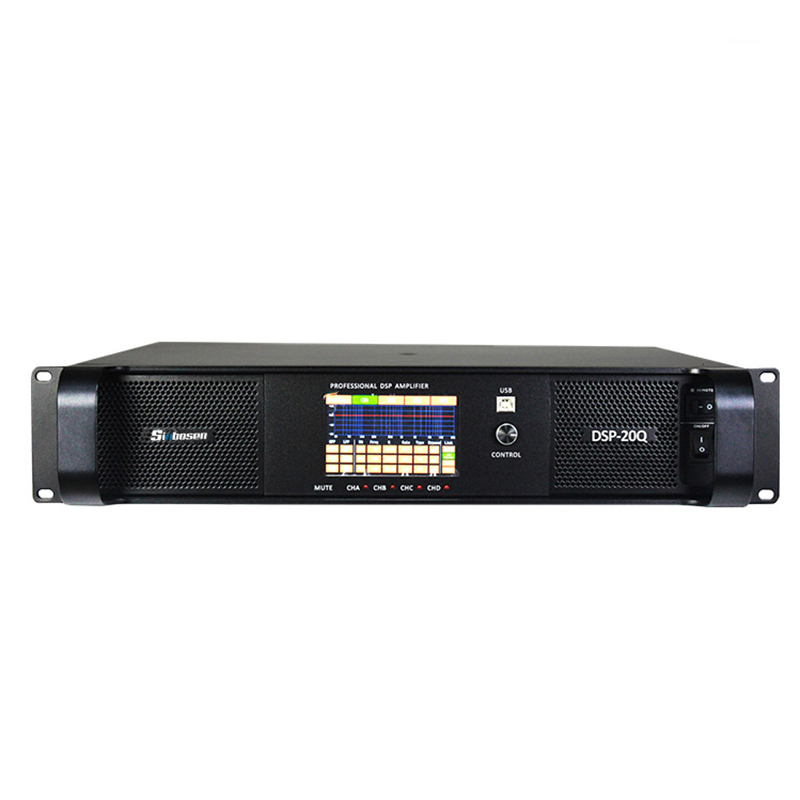

Sinbosen DSP20000Q 2200w 4 channel DSP power amplifier with dsp audio software
Item No.: DSP-20Q
Model: DSP20000Q
Channel: 4 channel power amplifier
Output Power:
8Ω Stereo Power (RMS): 2,200W X 4CH
4Ω Stereo Power (RMS): 4,000W X 4CH
Class: TD
Certification: CE, ROHS, TUV
Warranty: 3 Years
Special service: OEM service offered
Channel: 4 channel power amplifier
Output Power:
8Ω Stereo Power (RMS): 2,200W X 4CH
4Ω Stereo Power (RMS): 4,000W X 4CH
Class: TD
Certification: CE, ROHS, TUV
Warranty: 3 Years
Special service: OEM service offered
Description
Sinbosen Audio DSP Series Amplifier
| DSP10000Q | DSP12000Q | DSP20000Q | |||||
| 8 ohm Stereo Power (RMS) | 1300WX4 | 1500WX4 | 2200WX4 | ||||
| 4 ohm Stereo Power (RMS) | 2100WX4 | 2800WX4 | 4000WX4 | ||||
| 2 ohm Stereo Power (RMS) | 2500WX4 | 3500WX4 | 4500WX4 | ||||
| 8 ohm Bridged Power (RMS) | 4200WX2 | 5600WX2 | 8000WX2 | ||||
| 4 ohm Bridged Power (RMS) | 5000WX2 | 7000WX2 | 9000WX2 | ||||
| Frequency Response(+o/-0.3dB,1W/8Ω)： | 20 Hz - 34 kHz | ||||||
| THD 20 Hz - 20 kHz for 1W: | <0.1% | ||||||
| Signal-to-Noise Ratio: | >112 dBA | ||||||
| Channel separation (Crosstalk) at 1 kHz ： | >70 dB | ||||||
| Input Connectors (per channel)： | 3 pin XLR, electronically balanced | ||||||
| Output Connectors (per channel)： | Binding Posts 2-pole | ||||||
| Class： | TD | ||||||
| TourClass Protection： | ACL, IGM, AutoRamp, short circuit, DC voltage, turn on/off transient, current inrush, sub/ultrasonic input | ||||||
| Operating voltage, 220V / 110V nominal： | 180-240 V / 90-130 V selectable | ||||||
| Voltage Gain(dB)： | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable | ||||||
| Input impedance： | 20 kOhm | ||||||
| Level adjustment (per ch.)： | Front panel potentiometer, 31 positions detented from -inf to 0 dB | ||||||
Question : Do you know what's the difference between DSP Amplifier and FP Amplifier?
Some clients prefer the DSP series amplifier. They don't need to spare more time to install the extra audio processor. DSP series amplifier audio system lighter, simpler to operate. And we create the DSP series based on FP series amplifier.

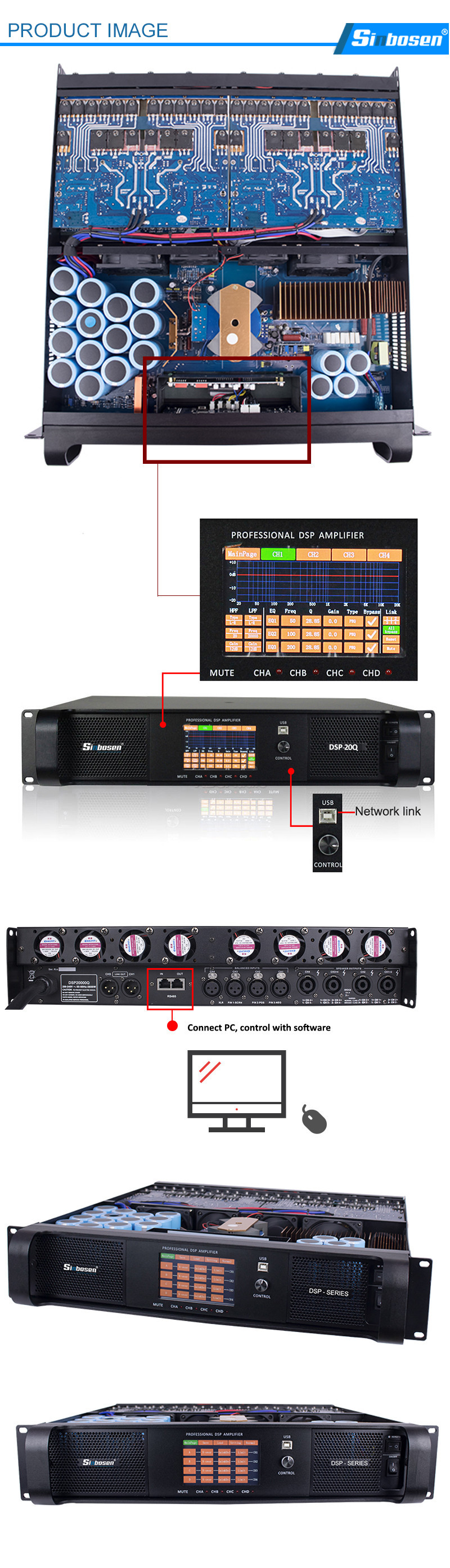

| Touch screen | Software control | Multiple power amplifier controls |
| Amplifier built-in processor,4 inch size led screen can touch,control the amplifier sound effect | DSP amplifier also cintrol by PC,through software can more precise adjustment dsp processor | One PC can independent control serveral dsp amplifier at the same time |

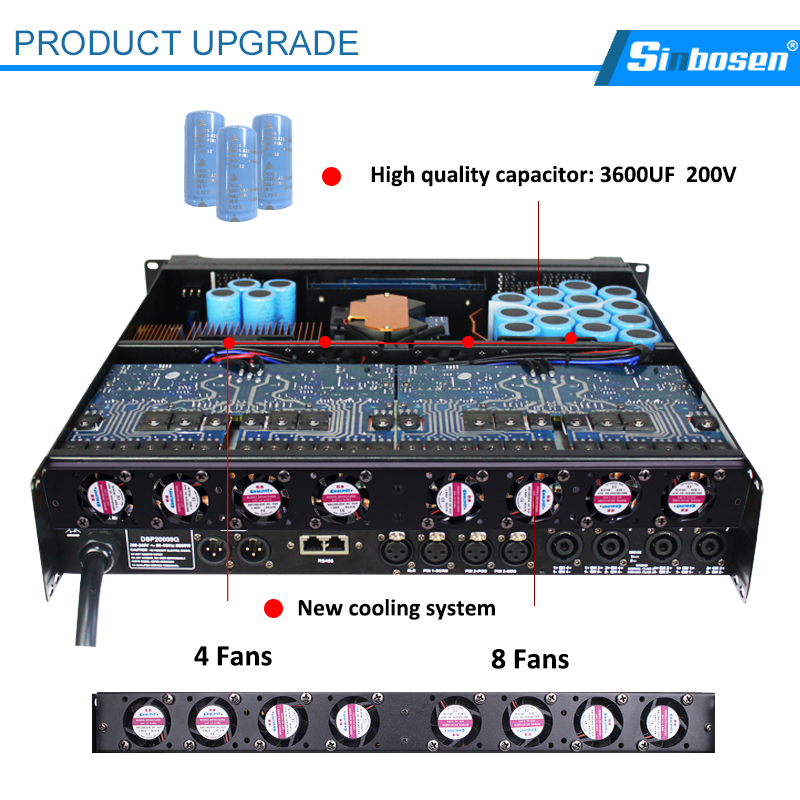

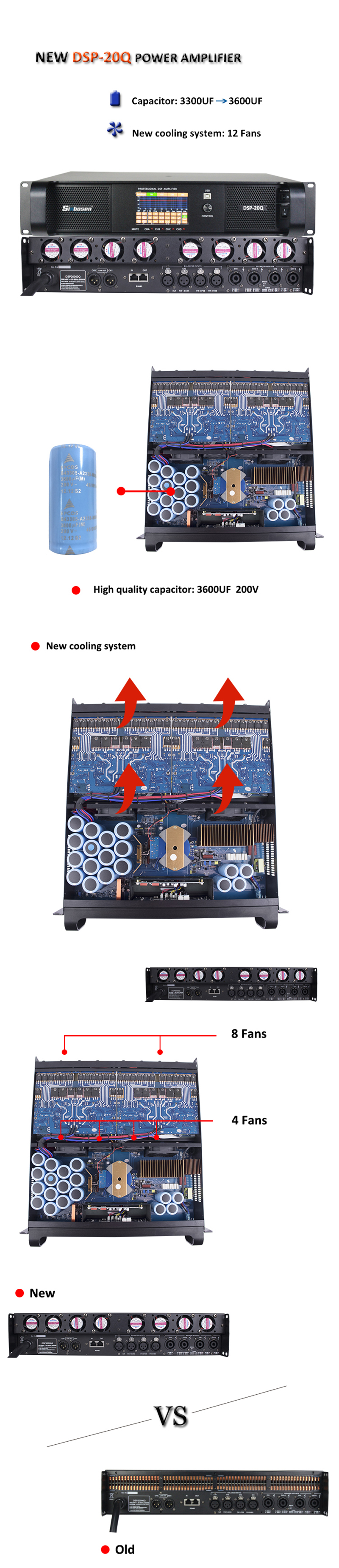

Capacitor Upgrade

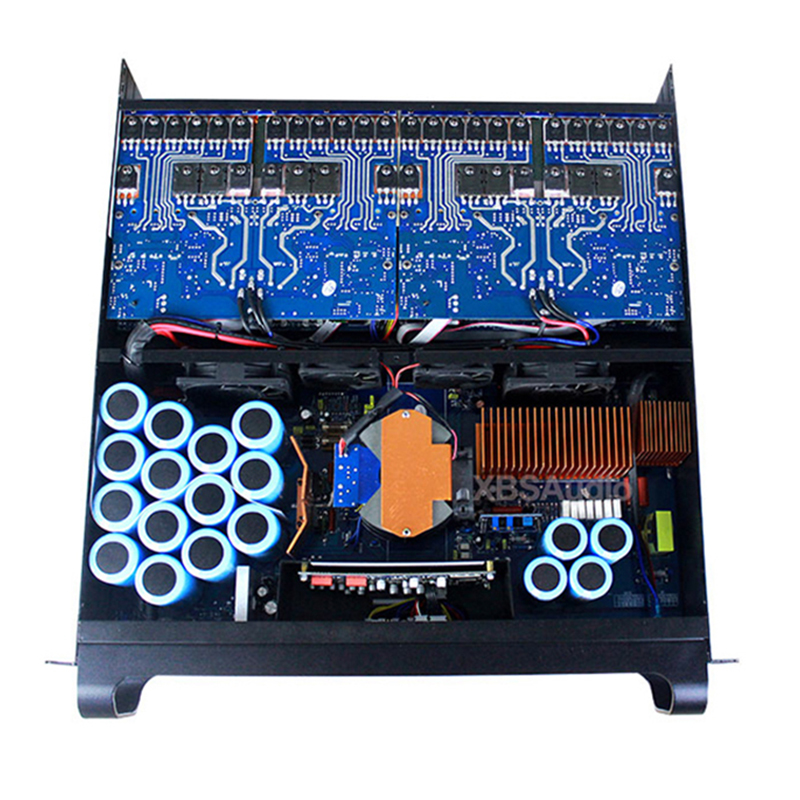

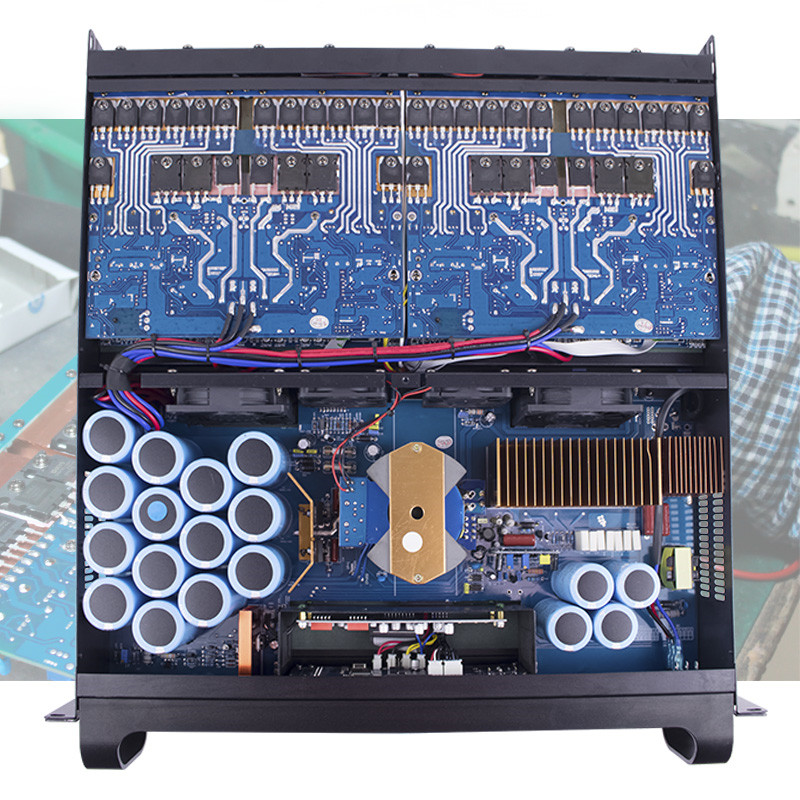

The old one is 3300UF 200V and now the new is 3600UF 200V. Totally add more 300UF capacity. The amplifier power supply board is better than before, it will make your subwoofer bass sound quality more loud and powerful.
New cooling system
We upgrade cooling system, added 8 fans on the rear panel. Enhance the heat dissipation capability of the amplifier.
We upgrade cooling system, added 8 fans on the rear panel. Enhance the heat dissipation capability of the amplifier.
►4 Channel Class TD Switching power amplifier with DSP
►4 x 4,000 Watts into 4 Ohms, 4 x 2,200 Watts into 8 Ohms
►Create SUPER sound quality

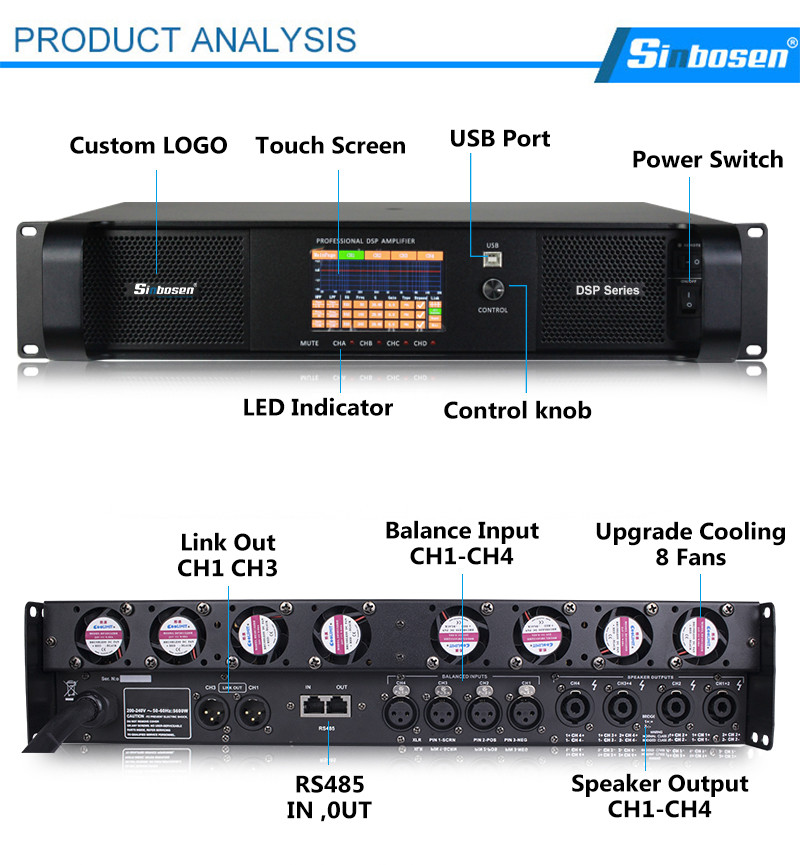

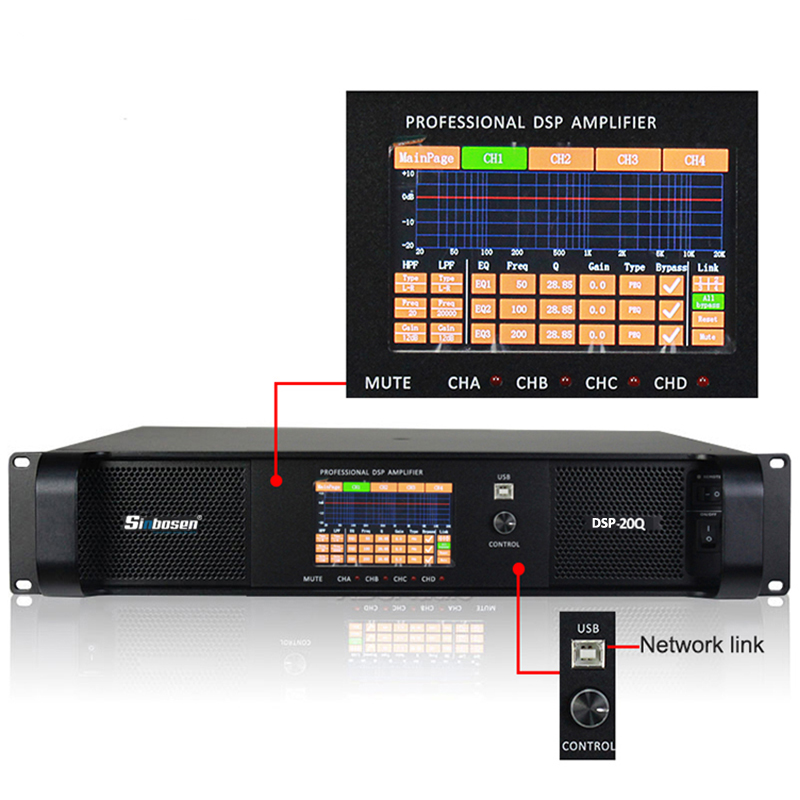

►Control the sound effect by Touch on front 4" LED display screen

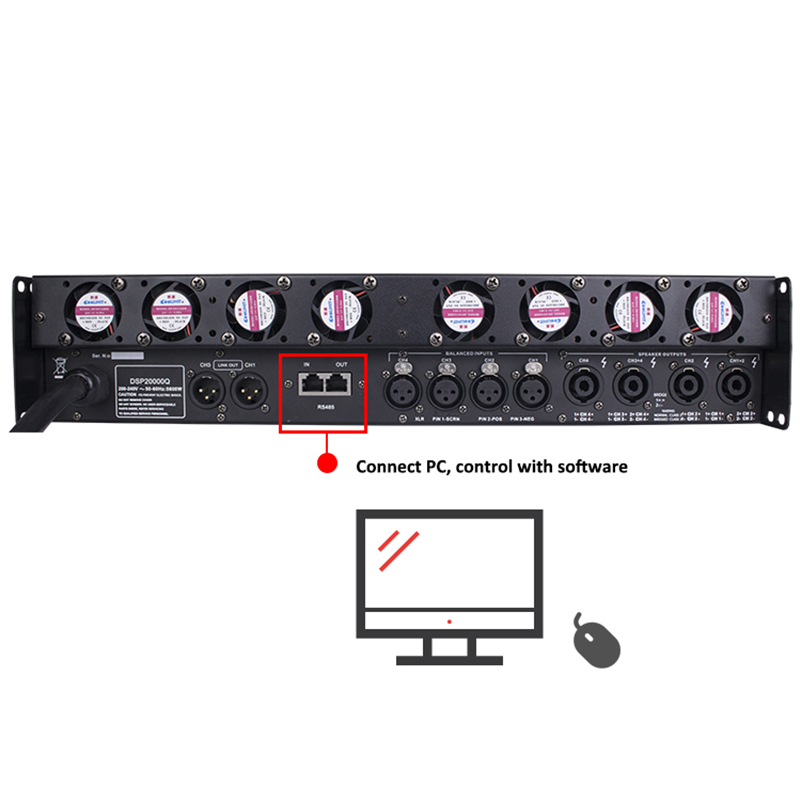

►Or control the sound effect by Computer
►Simple DSP software,no need install,easy operate it
►Bridge-mode operation for Touring Applications
►Comprehensive protection scheme

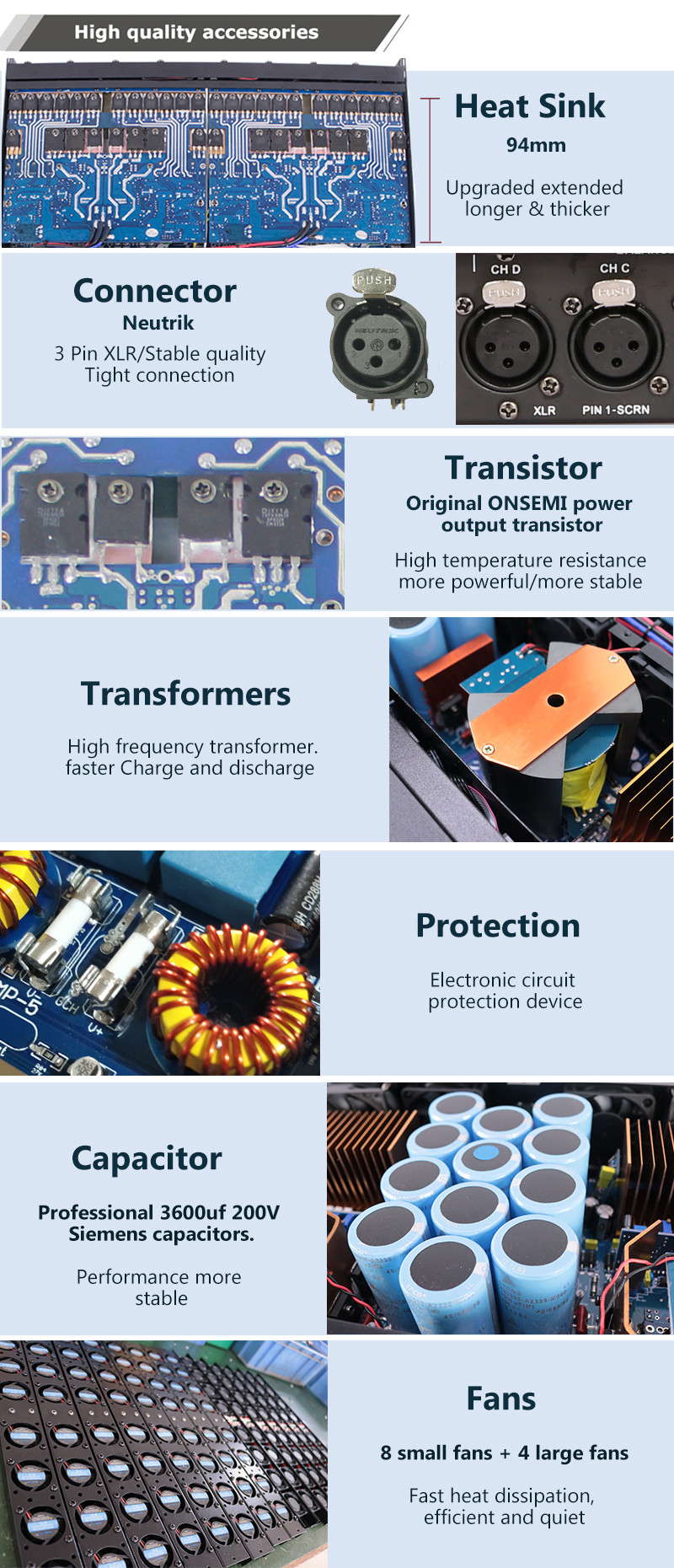

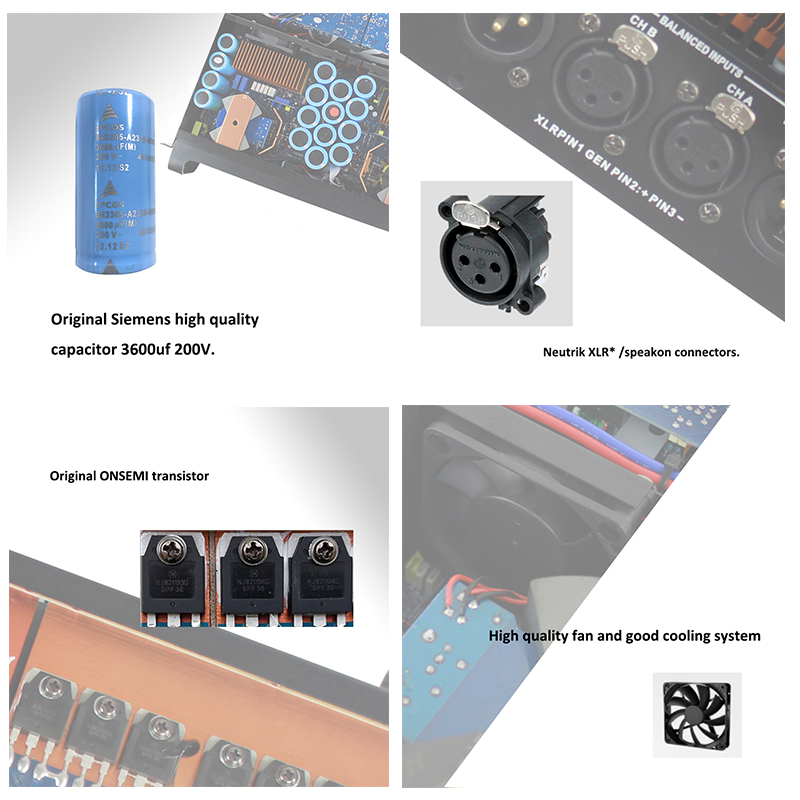

►Use Original Siemens high quality capacitor 3600uf 200V
►Use Original ONSEMI transistor
►Neutrik XLR*/Speakon connectors
►Extended heatsink board to 94 mm
 |
 |
 |
 |
 |
 |
