DSP Amp For Line Array Speaker

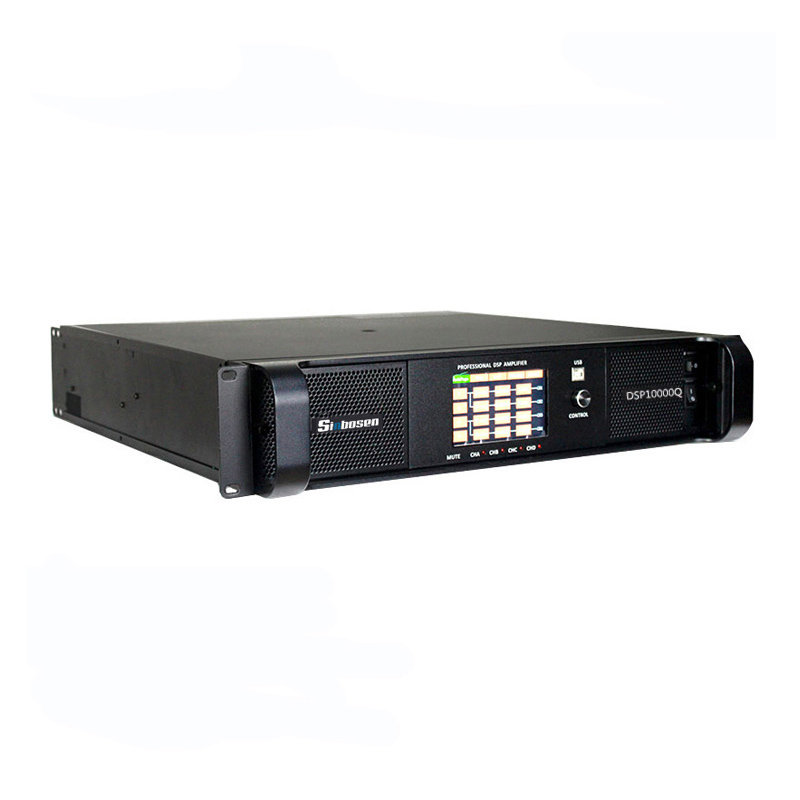

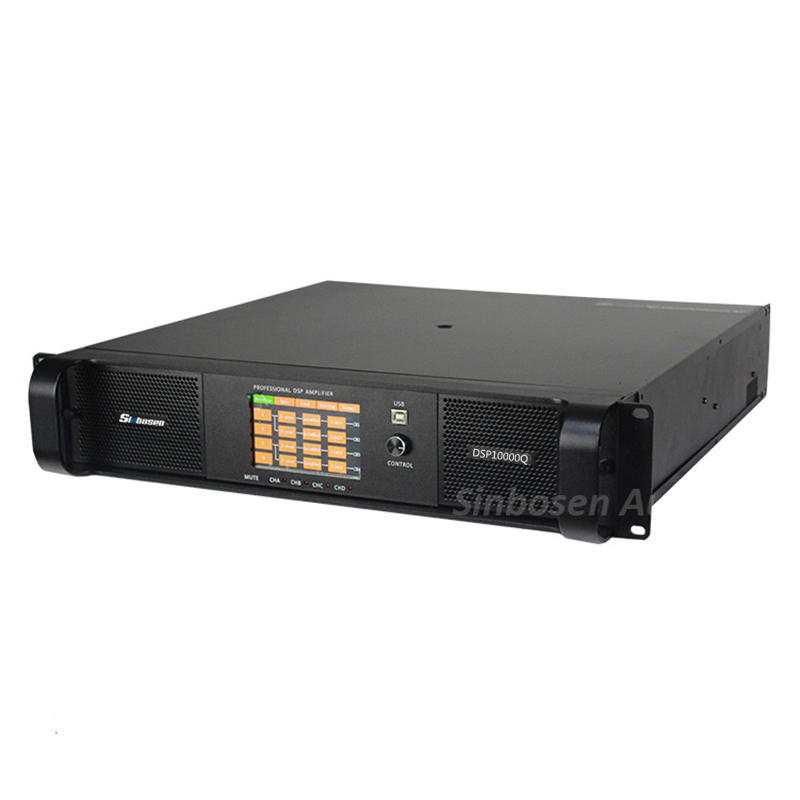

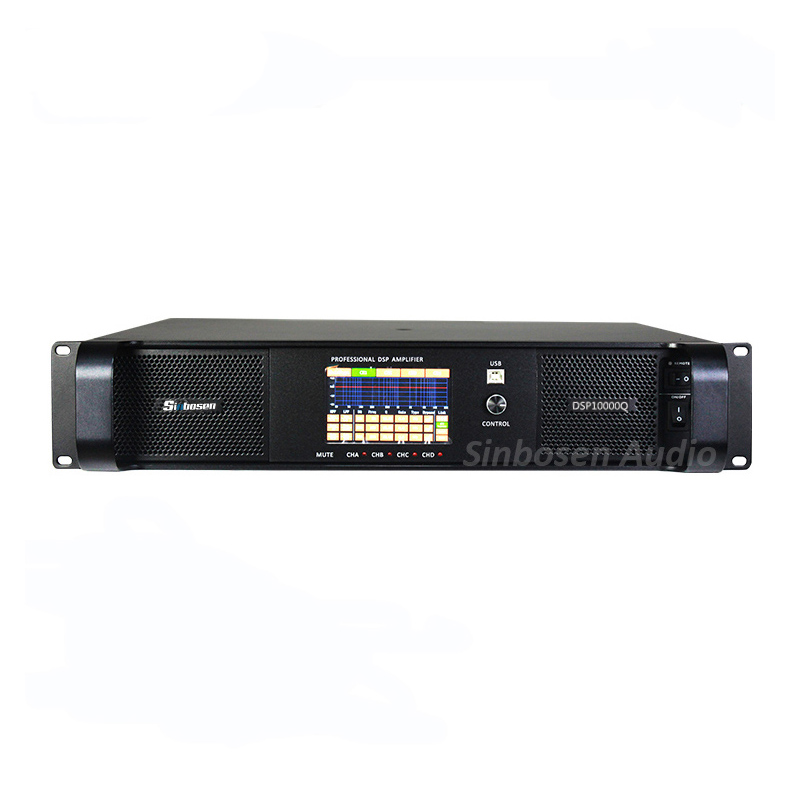

Sinbosen DSP10000Q 4 channel dsp amplifier remote computer control
Item No.: DSP-10Q
Model: DSP10000Q
Channel: 4 channel power amplifier
Output Power:
8Ω Stereo Power (RMS): 1,300W X 4CH
4Ω Stereo Power (RMS): 2,100W X 4CH
Class: TD
Certification: CE, ROHS, TUV
Warranty: 3 Years
Special service: OEM service offered
Channel: 4 channel power amplifier
Output Power:
8Ω Stereo Power (RMS): 1,300W X 4CH
4Ω Stereo Power (RMS): 2,100W X 4CH
Class: TD
Certification: CE, ROHS, TUV
Warranty: 3 Years
Special service: OEM service offered
Description
Sinbosen Audio DSP Series Amplifier
| DSP10000Q | DSP12000Q | DSP20000Q | |||||
| 8 ohm Stereo Power (RMS) | 1300WX4 | 1500WX4 | 2200WX4 | ||||
| 4 ohm Stereo Power (RMS) | 2100WX4 | 2800WX4 | 4000WX4 | ||||
| 2 ohm Stereo Power (RMS) | 2500WX4 | 3500WX4 | 4500WX4 | ||||
| 8 ohm Bridged Power (RMS) | 4200WX2 | 5600WX2 | 8000WX2 | ||||
| 4 ohm Bridged Power (RMS) | 5000WX2 | 7000WX2 | 9000WX2 | ||||
| Frequency Response(+o/-0.3dB,1W/8Ω)： | 20 Hz - 34 kHz | ||||||
| THD 20 Hz - 20 kHz for 1W: | <0.1% | ||||||
| Signal-to-Noise Ratio: | >112 dBA | ||||||
| Channel separation (Crosstalk) at 1 kHz ： | >70 dB | ||||||
| Input Connectors (per channel)： | 3 pin XLR, electronically balanced | ||||||
| Output Connectors (per channel)： | Binding Posts 2-pole | ||||||
| Class： | TD | ||||||
| TourClass Protection： | ACL, IGM, AutoRamp, short circuit, DC voltage, turn on/off transient, current inrush, sub/ultrasonic input | ||||||
| Operating voltage, 220V / 110V nominal： | 180-240 V / 90-130 V selectable | ||||||
| Voltage Gain(dB)： | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable | ||||||
| Input impedance： | 20 kOhm | ||||||
| Level adjustment (per ch.)： | Front panel potentiometer, 31 positions detented from -inf to 0 dB | ||||||
Question: Do you know what's the difference between DSP Amplifier and FP Amplifier?
Some users prefer to make amplifier with DSP function in one same machine. Don't need to spare more time to install the extra audio processor. 2 in 1 design make audio system more lighter, simpler to operate. So we create the DSP series based on FP series amplifier.

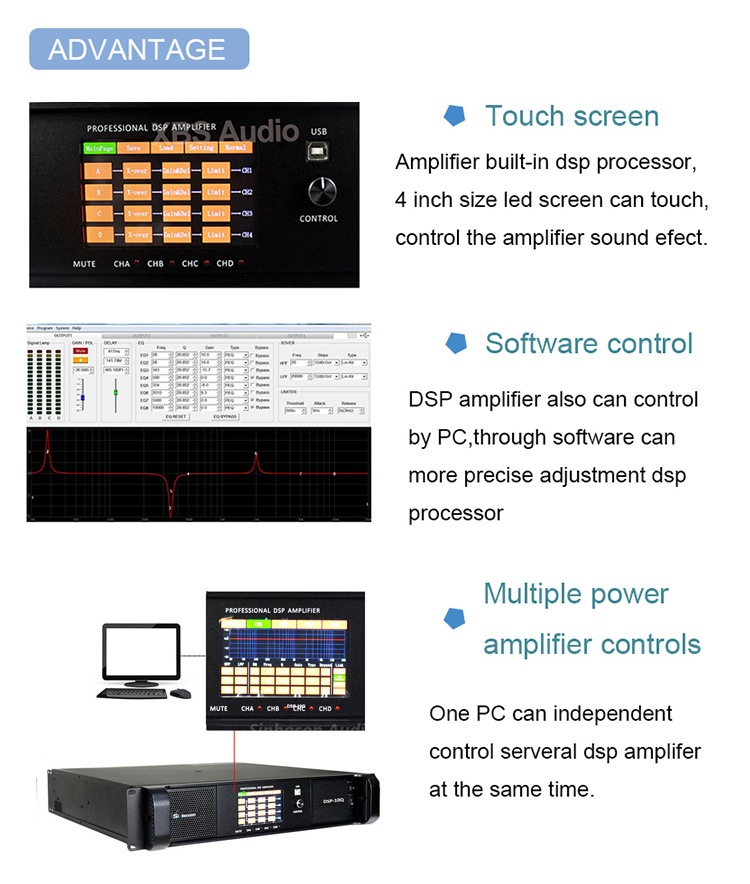

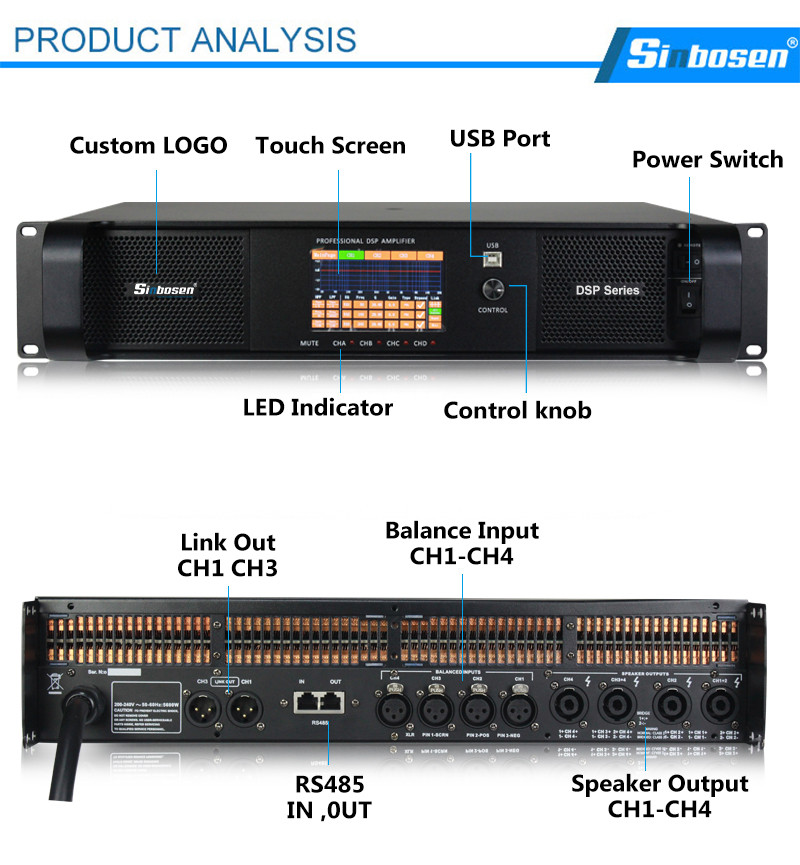

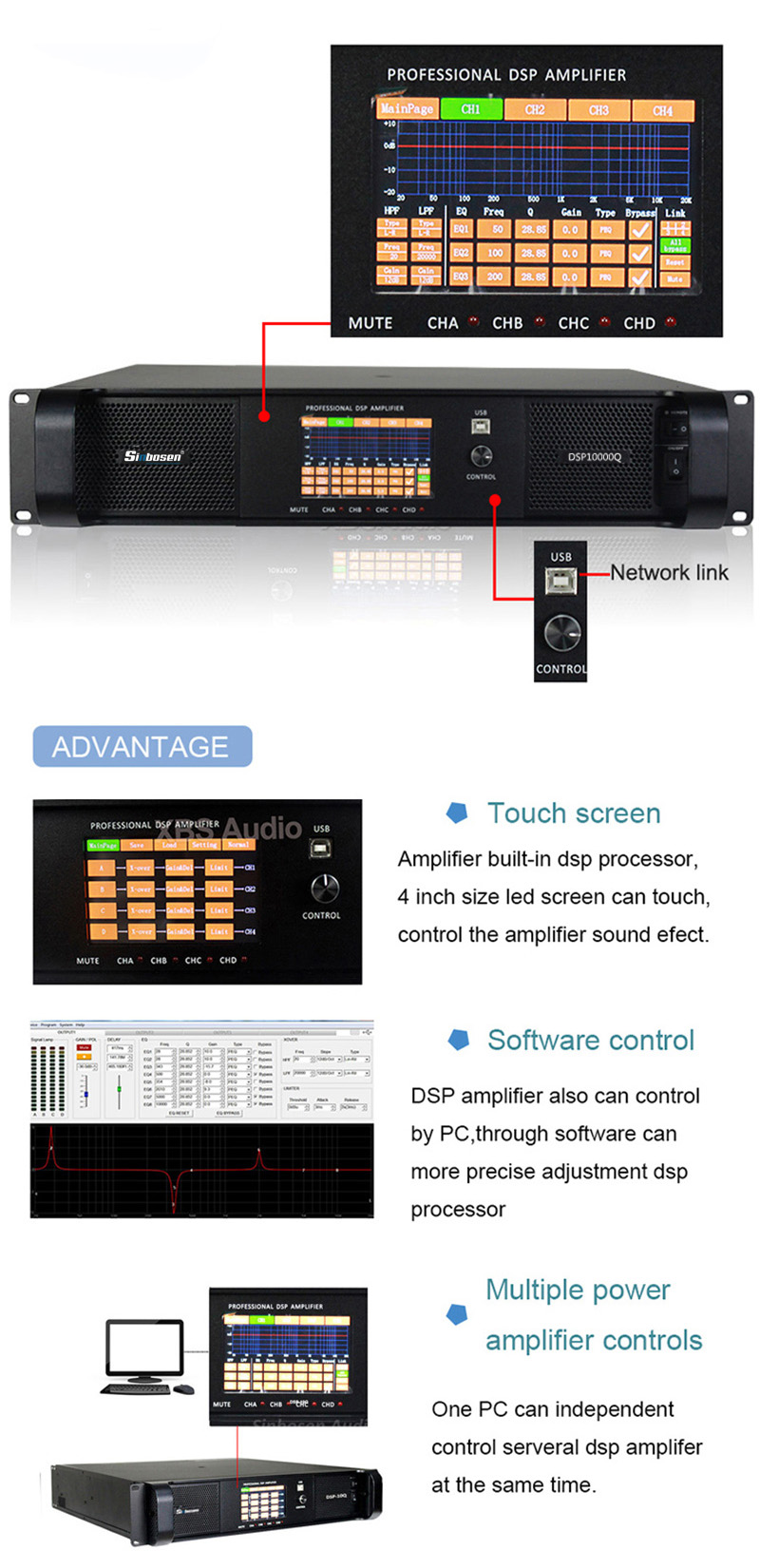

| Touch screen | Software control | Multiple power amplifier controls |
| Amplifier built-in processor,4 inch size led screen can touch,control the amplifier sound effect | DSP amplifier also cintrol by PC,through software can more precise adjustment dsp processor | One PC can independent control serveral dsp amplifier at the same time |

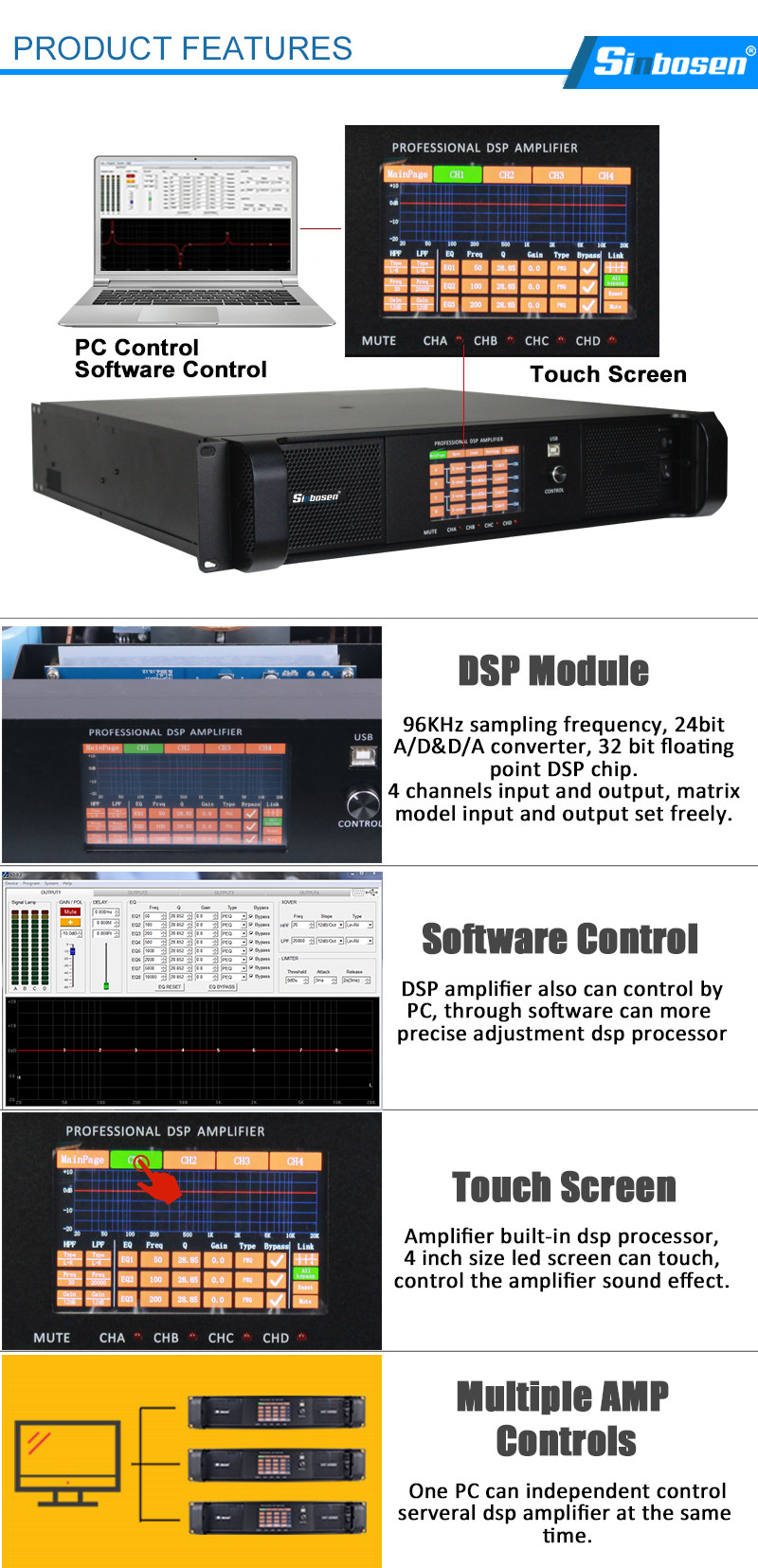

►4 Channel Class TD Switching power amplifier.
►Create SUPER sound quality

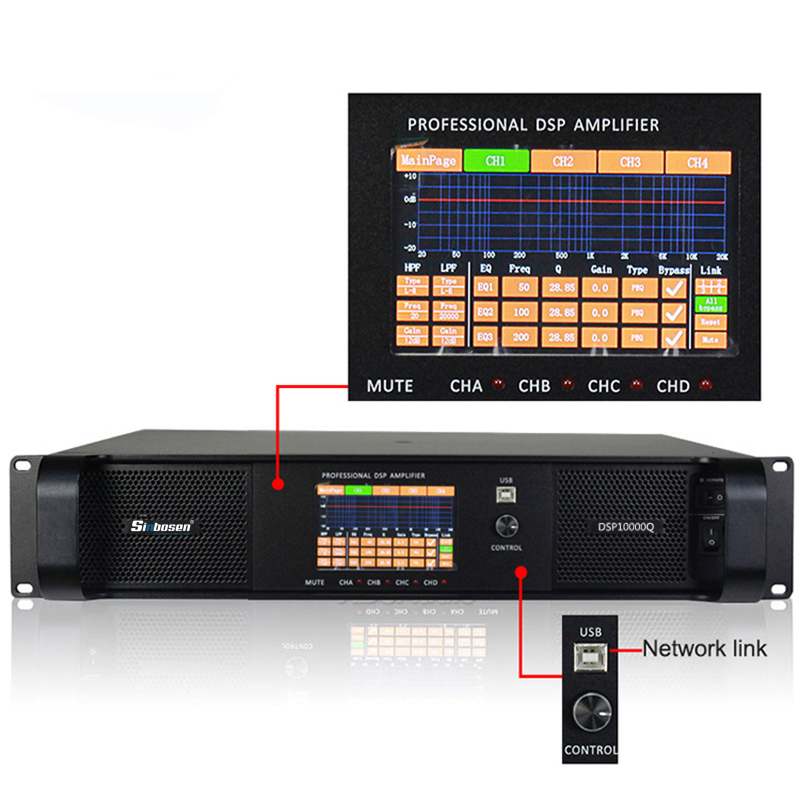

►Control the sound effect by Touch on front 4" LED display screen

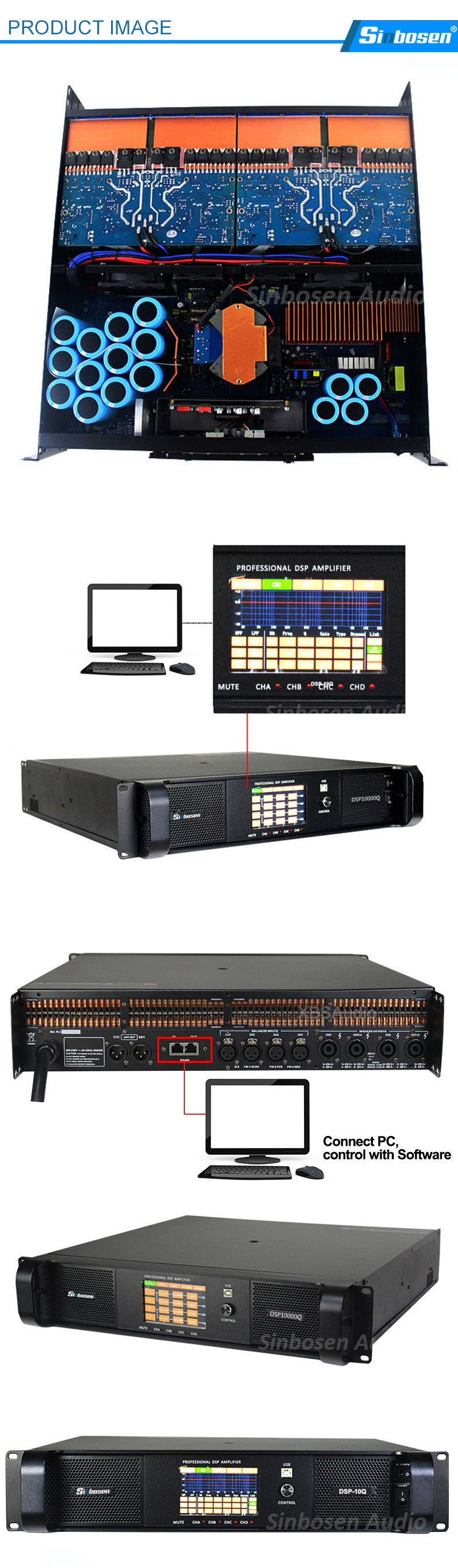

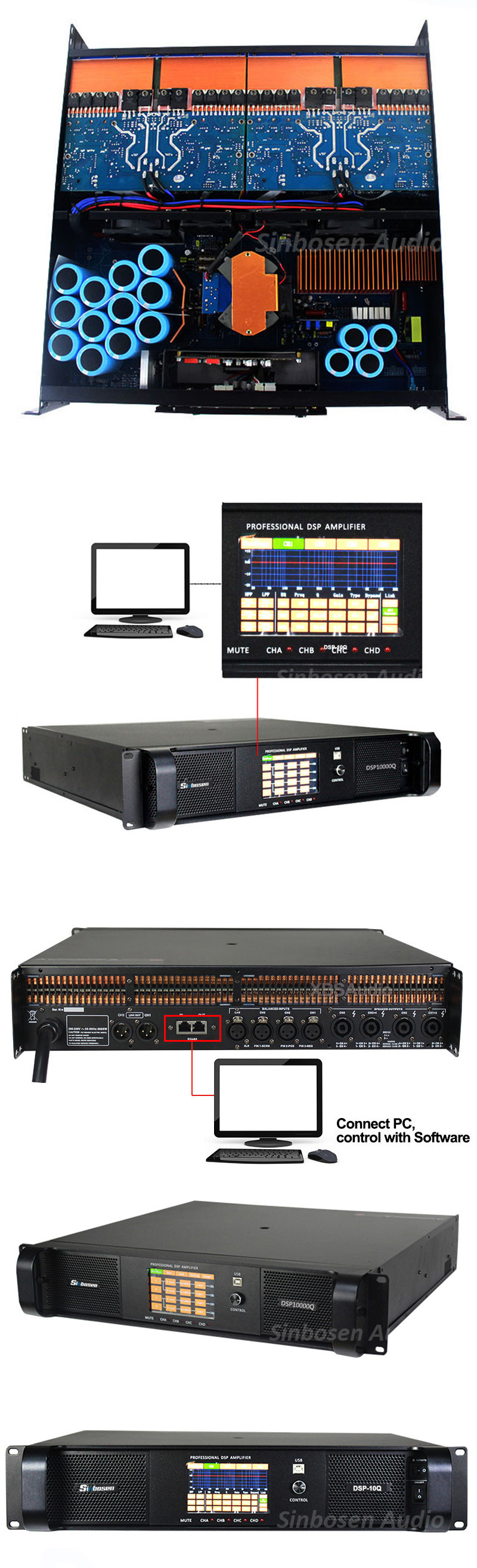

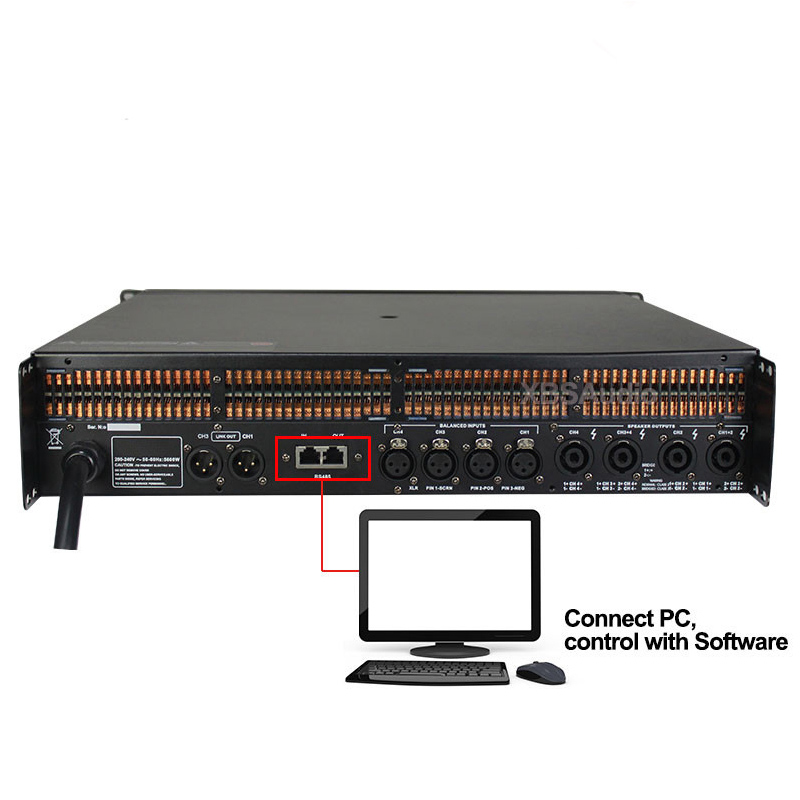

►Or control the sound effect by Computer
►Simple DSP software,no need install,easy operate it
►Bridge-mode operation for Touring Applications
►Comprehensive protection scheme

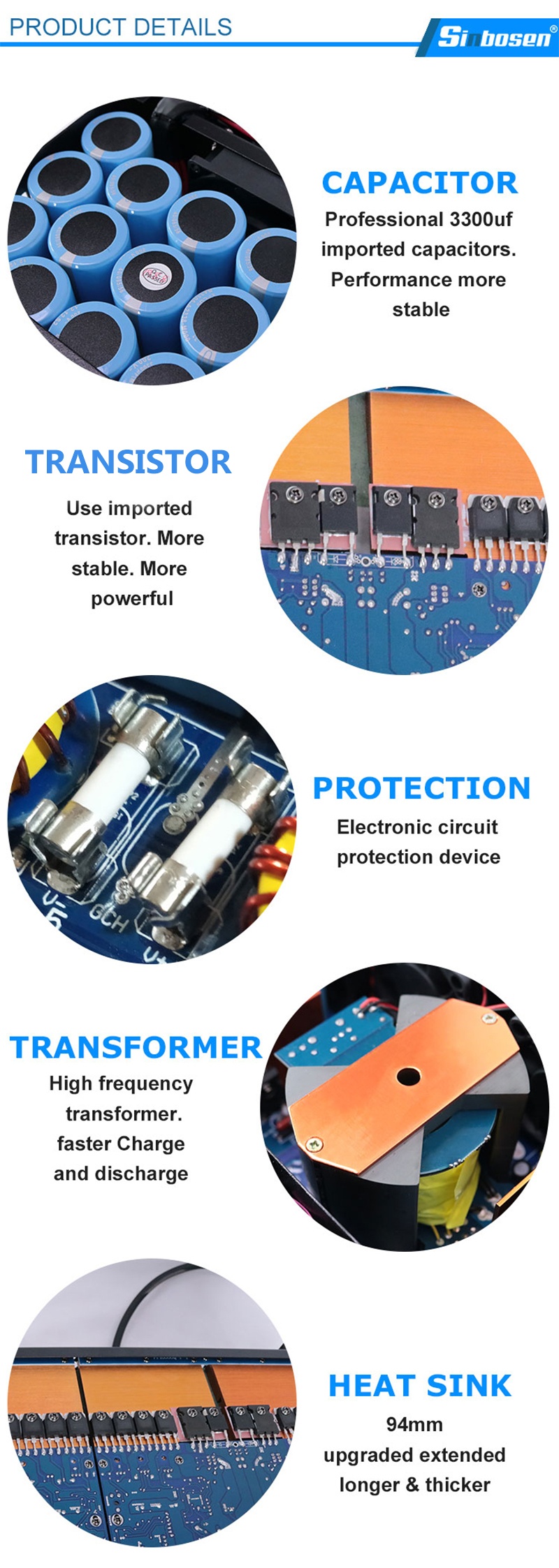

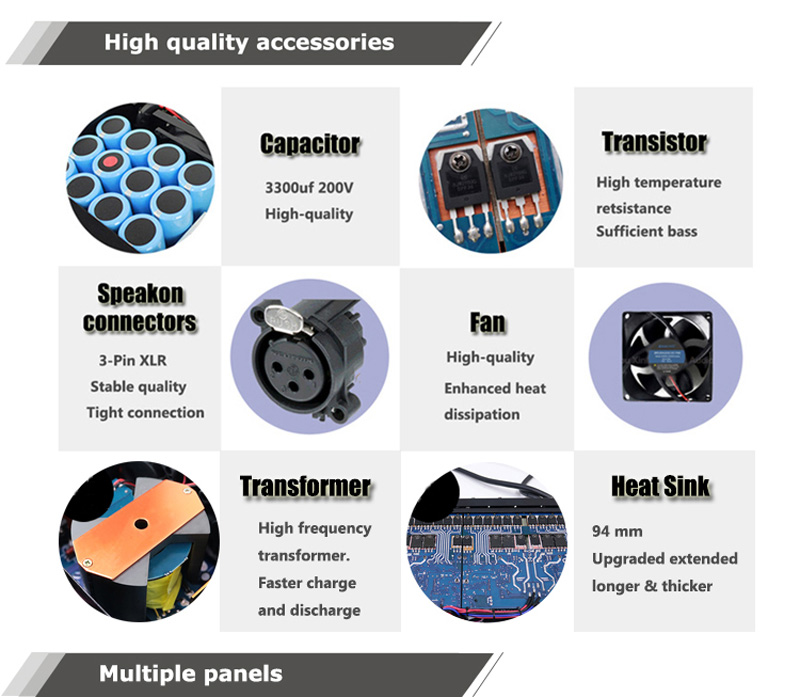

►Use original Siemens high-quaity capacitor 3300uf 200V
►Use Original ONSEMI transistor
►Neutrik XLR*/Speakon connectors
►Extended heatsink to 94 mm
►Create SUPER sound quality
►Control the sound effect by Touch on front 4" LED display screen
►Or control the sound effect by Computer
►Simple DSP software,no need install,easy operate it
►Bridge-mode operation for Touring Applications
►Comprehensive protection scheme
►Use original Siemens high-quaity capacitor 3300uf 200V
►Use Original ONSEMI transistor
►Neutrik XLR*/Speakon connectors
►Extended heatsink to 94 mm
