Sinbosen Launches LA548: AFC / DEQ / AUTO EQ / AUTO FIR / REW EQ — Five Intelligent Engines Redefining Speaker Management

In professional audio engineering, system tuning is often the most time-consuming and experience-dependent part of the workflow. Getting a speaker system from initial setup to its ideal state traditionally requires repeated measurements, manual EQ adjustments, point-by-point phase corrections, and separate feedback suppression configuration — a process that not only demands deep technical expertise but also consumes substantial on-site time.

Sinbosen Audio's latest LA548 4×8 Speaker Management Processor changes this entirely with five core intelligent engines: AFC Feedback Suppression, DEQ Dynamic EQ, AUTO EQ, AUTO FIR, and REW EQ One-Click Import.

Five Intelligent Engines That Redefine System Tuning Efficiency

AES Digital Audio Input — Full Digital Signal Chain

The LA548 introduces an AES/EBU digital audio input, allowing direct reception of AES signals from digital mixing consoles or digital audio sources (via input channels A and C), eliminating the signal degradation and noise introduced by unnecessary D/A and A/D conversion stages. Each input channel can independently select its signal source: analog, AES digital, or the built-in signal generator (pink noise / white noise / sine wave). For live sound and fixed installation projects demanding the highest audio quality, an all-digital signal chain means a cleaner audio path and higher system SNR — the LA548 itself already delivers an impressive >118dB SNR and < 0.005% THD+N.

AUTO EQ — One-Click Full-System Equalization

AUTO EQ is one of the LA548's most groundbreaking features. Simply import your measured frequency response curve from measurement software such as SMAART or REW, set your target curve, and the LA548 automatically calculates and applies the optimal EQ parameters. What once required hours of iterative listening, manual point-dragging, and repeated verification is now truly "import → set target → done." For venues such as hotel ballrooms and multi-function halls that require frequent sound field reconfiguration, AUTO EQ dramatically lowers the tuning barrier and saves significant time.

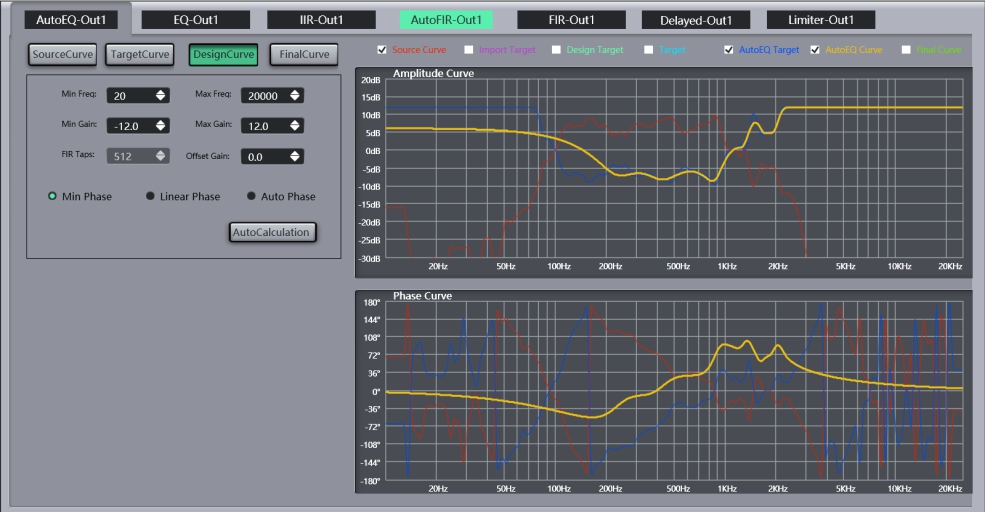

AUTO FIR — Three-Mode Automatic Phase Correction

FIR filters enable precise frequency response shaping without introducing phase distortion, but manually designing FIR coefficients has been a notoriously high-barrier task for most engineers. The LA548's AUTO FIR function supports three automatic calculation modes:

• Minimum Phase: Ideal for latency-sensitive applications
• Linear Phase: Ensures phase consistency across the full frequency range
• Auto Phase: Intelligently selects the optimal phase strategy

Simply import your measured curve and target curve, select the mode, and the LA548 automatically computes and applies the FIR coefficients. Both input and output channels support FIR filters, taking system phase correction coverage and precision to a new level.

AFC Feedback Suppression — 6-Level Independent Control, the Feedback Killer

Acoustic feedback (howling) is one of the most frustrating problems in live sound reinforcement. The LA548 features built-in 6-level AFC automatic feedback suppression, independently controllable per channel. From mild suppression to aggressive clamping, engineers can flexibly select the suppression intensity based on the venue's acoustic environment, finding the optimal balance between feedback prevention and natural tonal character. Combined with the front panel's one-touch mute and master volume knob, instant response to emergencies is always at your fingertips — providing a reliable last line of defense for live performance safety.

DEQ Dynamic EQ — Independent Optimization for High and Low-Level Signals

Traditional EQ is a "one-size-fits-all" static approach — the same parameters apply regardless of signal level. In practice, however, loud and quiet signals often demand different frequency compensation strategies. The LA548's 3-band DEQ Dynamic Equalizer addresses this with an elegant solution:

• DEQ type: Parametric or High/Low Shelf, flexible matching of dynamic needs across frequency bands
• Trigger threshold configurable above or below target level, supporting both forward and reverse control
• Full per-channel parameter control: frequency, Q value, gain, attack/release time, and compression ratio — all freely adjustable

In short: automatically tame harsh highs at high volume, and naturally compensate for missing lows at low volume — DEQ ensures your system maintains a consistent tonal balance across all listening levels.

Powered by Premium DSP — Built for Intelligent Processing

The LA548 is powered by an ADI SHARC series high-performance floating-point DSP processor — a platform purpose-built for professional audio processing, delivering exceptional parallel computing capability and generous on-chip memory resources.

Hardware-Level Parallel Processing — The Computational Foundation for AUTO Functions

The automatic computation behind AUTO EQ and AUTO FIR involves intensive FIR convolution and spectral analysis. If these tasks shared the same computing resources as real-time audio processing, performance would be severely compromised. The LA548's DSP platform incorporates dedicated hardware acceleration units that offload filter operations from the main core to specialized hardware blocks for parallel execution — the audio processing pipeline and automatic computation tasks each have their dedicated resources, with zero contention.

This is the fundamental reason the LA548 can deliver real-time AUTO EQ and AUTO FIR automatic computation: not merely software assistance, but hardware-architected parallel processing power.

Generous On-Chip Memory — The Foundation for 12-Channel Full FIR Coverage

The LA548 features 4 inputs and 8 outputs — a total of 12 signal channels — with FIR filter support on both inputs and outputs, each offering 256 / 512 selectable taps. High-precision FIR filtering demands significant memory bandwidth and storage capacity. The LA548's ample on-chip SRAM is precisely what makes this architecture possible, ensuring every channel receives sufficient FIR processing resources without compromise.

This is where many competing products fall short: either FIR is limited to a subset of channels, or tap counts are reduced at the cost of precision. The LA548 delivers an uncompromising solution.

Note: At 192kHz sampling rate, output channels 7-8 will have their FIR filters removed. At 96kHz, full FIR functionality is available across all 12 channels.

LA548 vs LA448 — What's New?

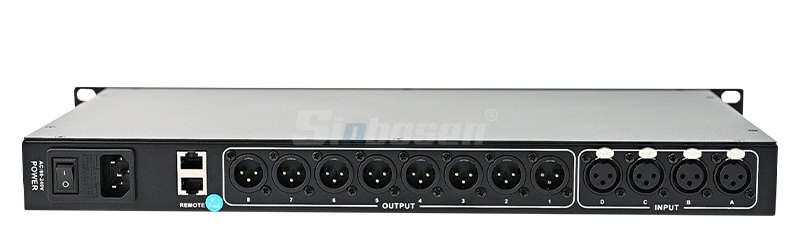

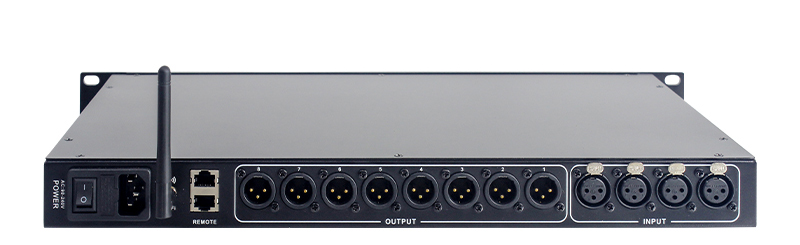

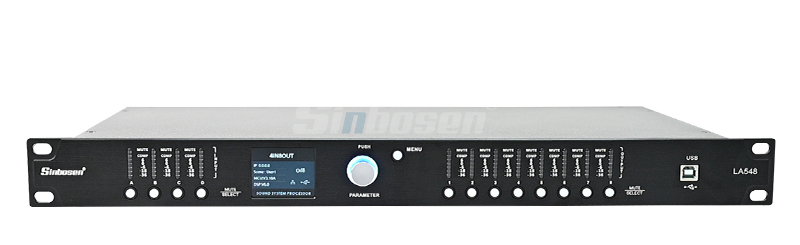

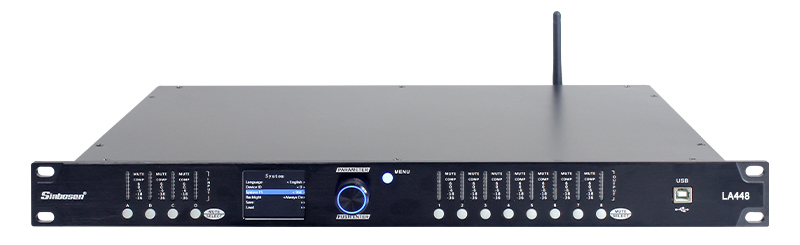

LA548 (local stock for E.U. Countries ready)	LA448 (local stock in E.U. Countries)

The LA548 upgrade is not simply "adding more features" — it is a functional restructuring and optimization:

• New AUTO EQ + AUTO FIR + REW Import elevate the tuning workflow from purely manual to measurement-data-driven automatic computation. This is a qualitative leap from "tool" to "intelligent assistant."
• FIR filter expanded from output-only to full input+output coverage, enabling phase correction from the very first stage of the signal chain for greater precision.
• New AFC Feedback Suppression fills a critical gap in the LA448, adding on-site anti-feedback capability essential for live performance scenarios.
• Wi-Fi removed, wired network retained: in professional live audio environments, wired connections are inherently more stable and reliable than Wi-Fi. This trade-off reflects the LA548's emphasis on "performance-grade reliability."

In short: the LA448 is an excellent manual processor. The LA548 is a manual processor that can also tune itself.

Who Needs the LA548?

• Rental & Live Sound Companies: AUTO EQ + AUTO FIR enable rapid system calibration at every event — venue changes no longer mean starting from scratch.
• Fixed Installation Integrators: AES all-digital signal chain + FIR phase correction for high-end projects in auditoriums, theaters, stadiums, and more.
• Line Array System Users: 1200ms extended delay range + FIR phase linearization to unlock the full acoustic potential of line array systems.
• Audio Engineers & System Technicians: REW data direct import + automatic computation turns your tuning expertise into reusable digital assets.
