Active Speaker
4.5" + 15" Active Column Array Outdoor powered Speaker System
Item No.: LA445
This is a set of detachable storage active column systems with high cost performance, excellent waterproof design, built-in powerful DSP amplifier board, and a lightweight design that makes it very suitable for touring.
Description
|
Column Speaker System
|
|
|
Model
|
LA445-1 + LA445-2
|
|
Transducer
|
(4x4.5" Ferrite Woofer / 1x3"HF Neodymium Driver)*2pcs
|
|
Power handling
|
225W(450W-Parallel)
|
|
Sensitivity
|
98dB (103dB -Parallel)
|
|
Max/Perk SPL
|
126.5dB/129.5dB(132.5dB/135.5dB -Parallel)
|
|
Frequency Range
|
90Hz-20kHz
|
|
Impedance
|
8Ω(4Ω-Parallel)
|
|
H*V (1KHz-16KHz)
|
100°x 10°
|
|
Enclosure
|
Aluminum
|
|
Type
|
Closed Box
|
|
Surface treatment
|
Oxidation Treatment
|
|
Lifting Point
|
M8
|
|
colour
|
Black
|
|
Dimensions(WxDxH)
|
125 x139x580mm (125x 139x1160mm-Parallel）
|
|
Weight
|
8KG (16KG -Parallel）
|
|
LA415 Active Subwoofer
|
|
|
Input Sensitivity
|
0.9Vrms / 1.3dBu @39dB
|
|
MaxInput Level
|
2Vrms / 8dBu
|
|
Power Requirements
|
AC220V/50Hz
|
|
Transducer
|
15"
|
|
Power handling
|
700W
|
|
Sensitivity
|
99dB
|
|
Max/Perk SPL
|
126dB / 130dB
|
|
Frequency Range
|
37Hz - 20kHz
|
|
LF Driver Unit
|
Aluminum Basin/Ferrite
|
|
Enclosure
|
Multiply Plywood
|
|
Type
|
Vented Box
|
|
Surface treatment
|
Polyurea paing
|
|
Lifting Point
|
M20
|
|
Colour
|
Black
|
|
Dimensions(WxDxH)
|
465×625×65.5mm
|
|
Weight
|
44.5KG
|
FEATURE
①Portable and Compact
Separate the linked speaker towers and support pole, then neatly tuck them away in three hidden storage slots under the subwoofer.
②Water Proof Design
1. Polyurea Protective Coating 2. All-Aluminum Protective Shell 3. Breathable Waterproof Mesh 4. Detachable Rain Cover

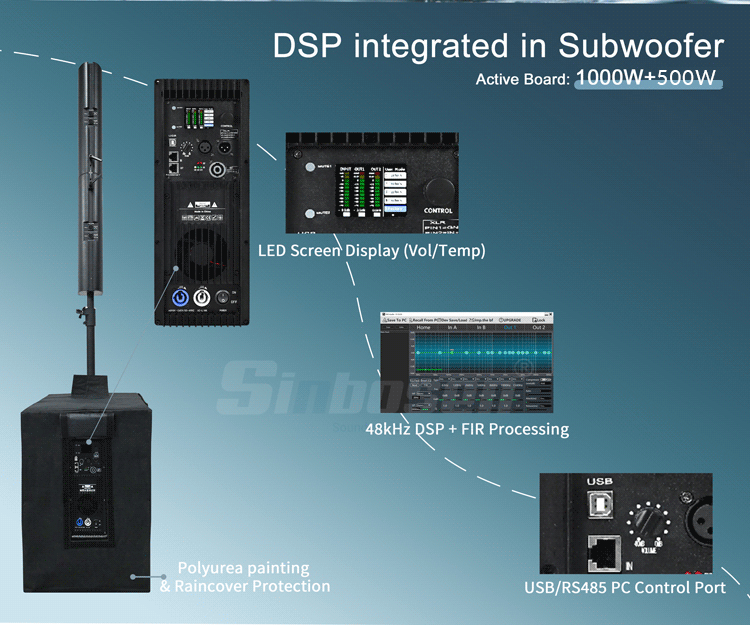

③DSP integrated in Subwoofer
Muti-functional dsp module: LED Screen Display (Vol/Temp), 48kHz DSP + FIR Processing, USB/RS485 PC Control Port,Comprehensive protectionv
Detail
 |
 |
 |
 |
