Amplifier For Subwoofer
3900 UF 200V Capacitor Fp22000q/Fp20000q Professional 4 Channel 10000 Watt Power Amplifier
Item No.: 3900 UF 200V Capacitor Fp22000q/Fp20000q

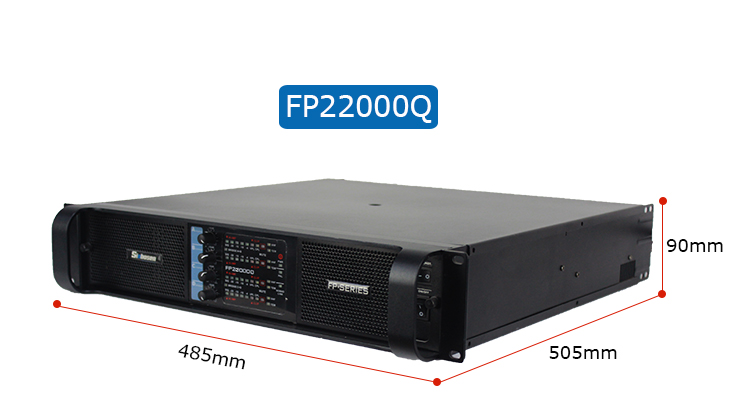

Model: FP22000Q
Channel: 4 channel power amplifier
Output Power:
8Ω Stereo Power (RMS): 2,500W X 4CH
4Ω Stereo Power (RMS): 4,650W X 4CH
Class: TD
Capacitor: 3900UF 200V
Certification: CE, ROHS, TUV
Warranty: 3 Years
Special service: OEM service
Channel: 4 channel power amplifier
Output Power:
8Ω Stereo Power (RMS): 2,500W X 4CH
4Ω Stereo Power (RMS): 4,650W X 4CH
Class: TD
Capacitor: 3900UF 200V
Certification: CE, ROHS, TUV
Warranty: 3 Years
Special service: OEM service
Description
| FP22000Q | FP9000 | FP14000 | FP6000Q | FP10000Q | FP20000Q | FP7000 | |
| 8 ohm Stereo Power (RMS) | 2500WX4 | 1800WX2 | 2400WX2 | 700WX4 | 1350WX4 | 2200WX4 | 1500WX2 |
| 4 ohm Stereo Power (RMS) | 4650WX4 | 3000WX2 | 4400WX2 | 1300WX4 | 2100WX4 | 4000WX4 | 2800WX2 |
| 8 ohm Bridged Power (RMS) | 9300WX2 | 6000W | 8800W | 2500WX2 | 4200WX2 | 8000WX2 | 5600W |
| 4 ohm Bridged Power (RMS) | 15000WX2 | 9000W | 14000W | 3000WX2 | 5000WX2 | 9000WX2 | 7000W |
| Frequency Response(+o/-0.3dB,1W/8Ω)： | 20 Hz - 34 kHz | ||||||
| THD 20 Hz - 20 kHz for 1W: | <0.1% | ||||||
| Signal-to-Noise Ratio: | >112 dBA | ||||||
| Channel separation (Crosstalk) at 1 kHz ： | >70 dB | ||||||
| Input Connectors (per channel)： | 3 pin XLR, electronically balanced | ||||||
| Output Connectors (per channel)： | Binding Posts 2-pole | ||||||
| Class： | TD | ||||||
| TourClass Protection： | ACL, IGM, AutoRamp, short circuit, DC voltage, turn on/off transient, current inrush, sub/ultrasonic input | ||||||
| Operating voltage, 220V / 110V nominal： | 180-240 V / 90-130 V selectable | ||||||
| Voltage Gain(dB)： | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable | ||||||
| Input impedance： | 20 kOhm | ||||||
| Level adjustment (per ch.)： | Front panel potentiometer, 31 positions detented from -inf to 0 dB | ||||||
| Característica | ►4 Channel Class TD Switching power amplifier ►4 x 4,400 Watts into 4 Ohms, 4 x 2,500 Watts into 8 Ohms ►Create SUPER sound quality, good for dual 18”/21” subwoofer ►Separately controllable on Gain ►Scalable Voltage Peak Limiter (VPL) ►The bridge-mode operation for Touring Applications ►Comprehensive protection scheme ►Upgrade high-quality capacitors 3600uf/200V ►Use Original ONSEMI power output transistor ►Neutrik XLR*/Speakon connectors |
||||||
Capacitor Upgrade
The old one is 3300UF 200V and now the new is 3900UF 200V. Totally add more 600UF capacity. The amplifier power supply board is better than before, it will make your subwoofer bass sound quality more loud and powerful.
(3900UF 200V Capacitor: Only a small amount of stock, if you have purchasing needs, please contact us as soon as possible!)
New heat sink
We upgrade cooling system, added 8 fans on the rear panel. Enhance the heat dissipation capability of the amplifier.
