Passive Speaker

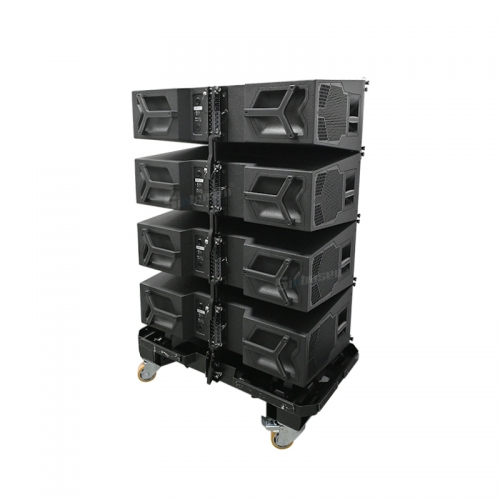

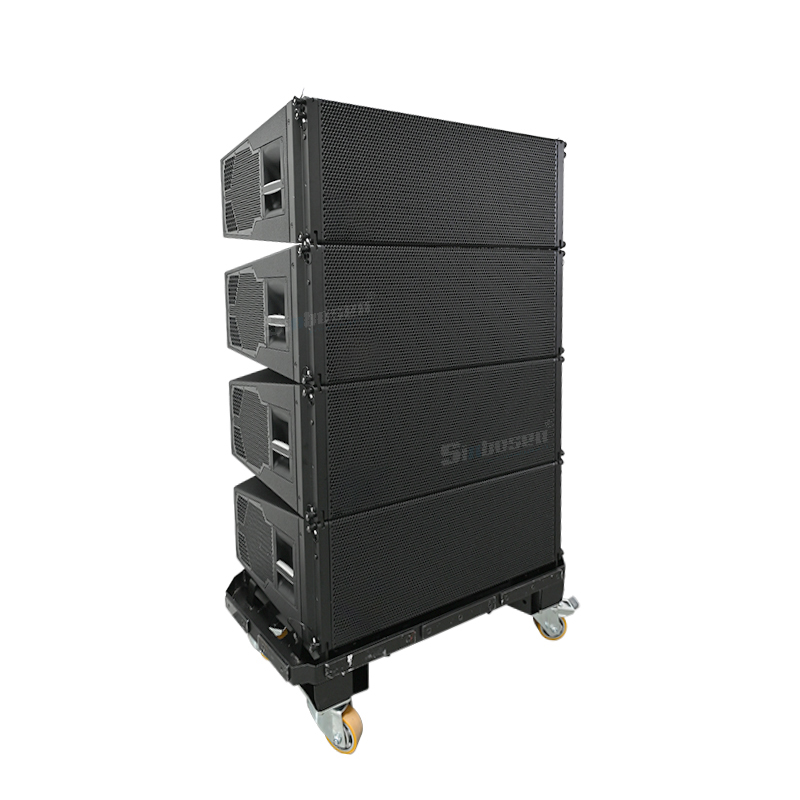

3 way 10 inch Splay angle settings Line Array Loudspeakers
Item No.: KTS-8/KTS-12
Components：2 × 10"/2 × 8"/1 × 8"/2 × 1.4"
Frequency response((-5 dB): 54 Hz – 18 kHz
Nominal impedance: 4Ω
Weight: 58kg
Frequency response((-5 dB): 54 Hz – 18 kHz
Nominal impedance: 4Ω
Weight: 58kg
Description
Brief Description
Detail
| KTS-8 and KTS-12 line modules deliver constant-directivity down to the lowest audible octaves—80° or 120° horizontal respectively—through a 3-way architecture. Two front 10" woofers plus dual side-firing 8" units behave like a single >12" piston, pushing SPL forward while cutting rear spill by 12 dB. Rigging adapts from festival hangs to fixed installs in arenas, stadiums, theatres or houses of worship without rewriting presets or amp racks. A single resolution suffices for every scale, so the same box voice travels from club bleed-free to stadium row 80. |
|

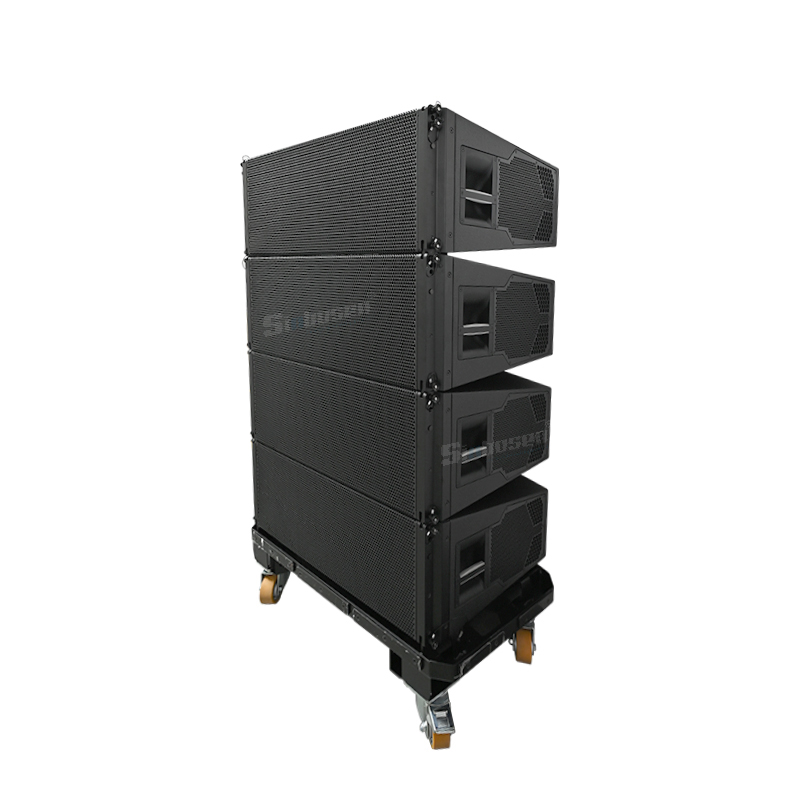

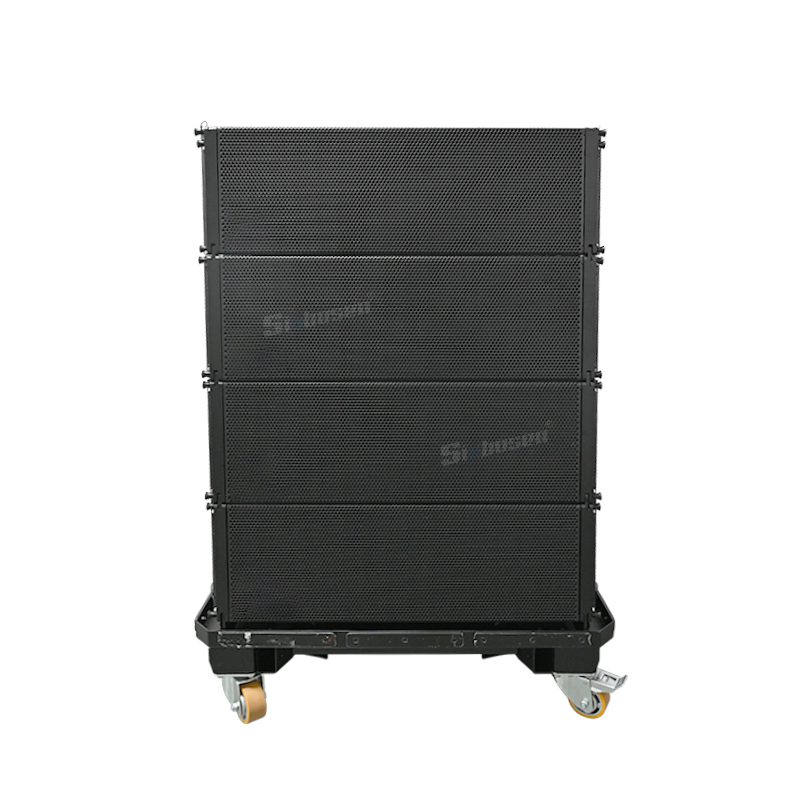

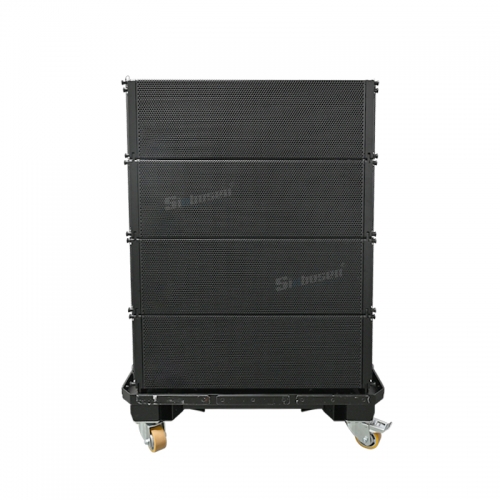

Medium to large format 3-way line array loudspeaker
|
||
|
Model
|
KTS-8
|
KTS-12
|
|
Max. sound pressure
|
145 dB
|
144 db
|
|
Nominal dispersion angle (horizontal)
|
80°
|
120°
|
|
Frequency response (-5 dB standard)
|
54 Hz – 18 kHz
|
|
|
Frequency response (-5 dB CUT mode)
|
75 Hz – 18 kHz
|
|
|
Nominal impedance front LF
|
8 ohms
|
|
|
Nominal impedance side LF/MF/HF
|
8 ohms
|
|
|
Power handling-front LF (RMS / peak 10 ms)
|
450 / 1800 W
|
|
|
Power handling-side LF/MF/HF (RMS / peak 10 ms)
|
250 / 1000 W
|
|
|
Splay angle settings
|
0 - 10° (1° increment)
|
|
|
Components
|
2 × 10" front LF driver
|
|
|
2 × 8" side LF driver
|
||
|
1 × 8" MF driver
|
||
|
2 × 1.4" exit compression driver with 3" voice coil
|
||
|
Passive crossover network
|
||
|
Connections
|
2 × NLT4 F/M
|
|
|
Dimensions (h × w × d)
|
330 × 1000 × 597 mm
|
|
|
13 × 39.4 × 23.5"
|
||
|
Weight
|
58 kg / 128 lb
|
|
|
Cabinet Material
|
Premium grade Russia birch plywood
|
|
|
Finish
|
Polyurea Cabinet Protection
|
|
|
Front & Side Panels
|
Rigid metal grills
|
|
|
Transparent and water-repellent fabric
|
||
|

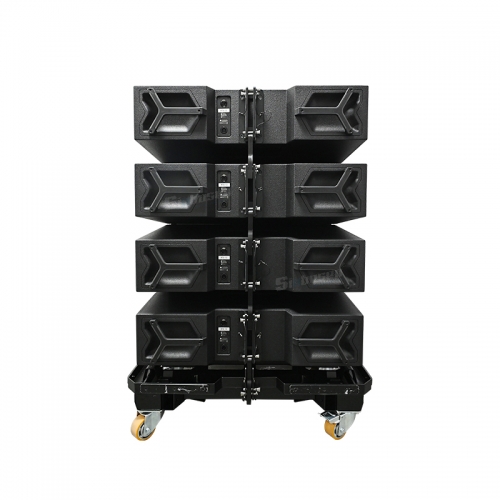

Size & Rear Handles
|
Recessed handle incorporated in each side panel
|
|
|
Additional handles provided at the rear
|
||
Detail
 |
 |

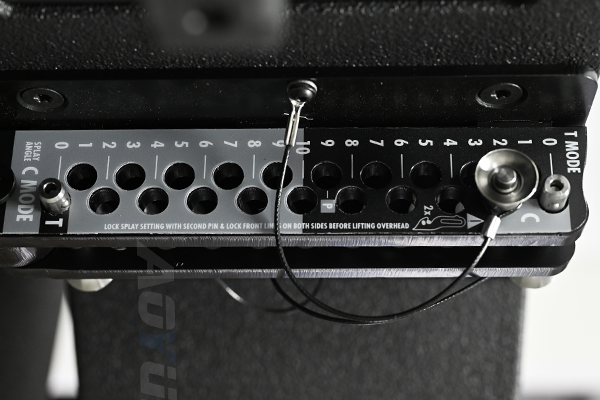

| Lock System of KTS-08 | Lock System of KTS-12 |
|
The GTS/KTS rigging system allows for two different rigging modes:
▪ Tension mode, ▪ Compression mode, ▪ or a combination of both, depending on the array length and the compression force required. |
|
 |

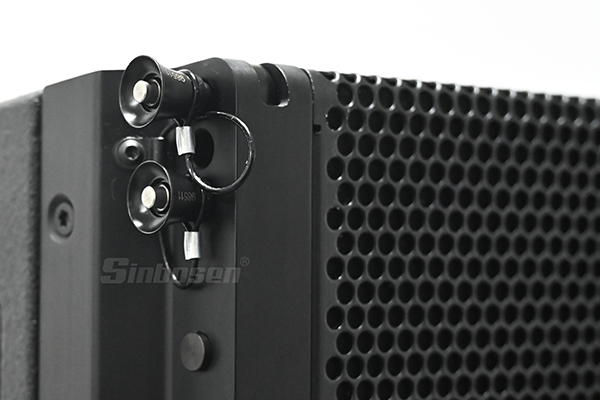

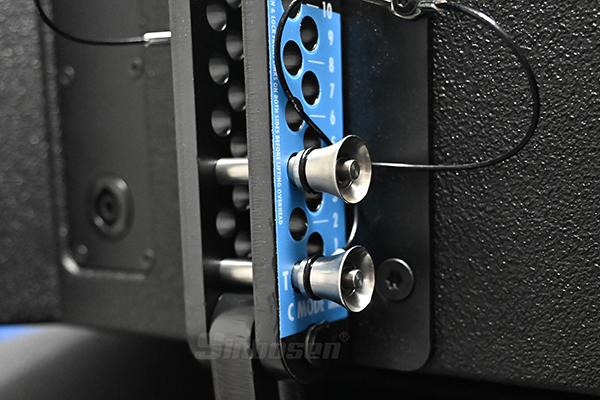

Locking pins (Quick lock mechanism)
1. Press the button to Release the locking mechanism 2. Remove the Locking pin through the respective link or socket. 3. Insert the Locking pin through the respective link or socket until it is fixed in place. 4. Release the button to Lock the pin 5. Recheck the Locking pin is securely locked by briefly pulling Lo the Locking pin towards you. |

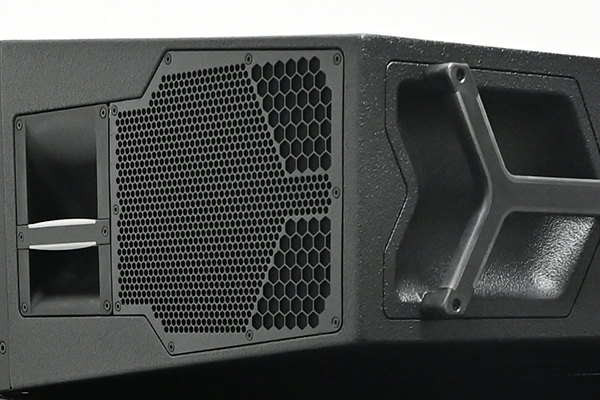

| The cabinets are constructed from First grade plywood and have an impact and weather protected PCP (Polyurea Cabinet Protection) finish. The front and side panels incorporate rigid metal grills backed by an acoustically transparent and water repellent fabric. Each side panel incorporates a recessed handle, with additional handles provided at the rear. |  |
 |

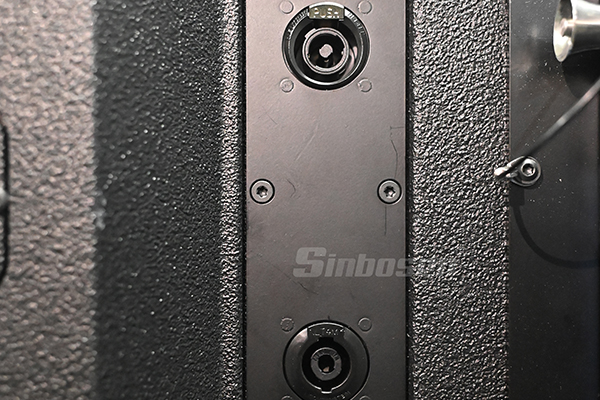

The 2 × NLT4 F/M connector configuration on the KTS-08 support professional-grade connectivity, ensuring optimal performance, reliability, and operational flexibility for concert touring, fixed installations, and large-format sound reinforcement applications.
|
